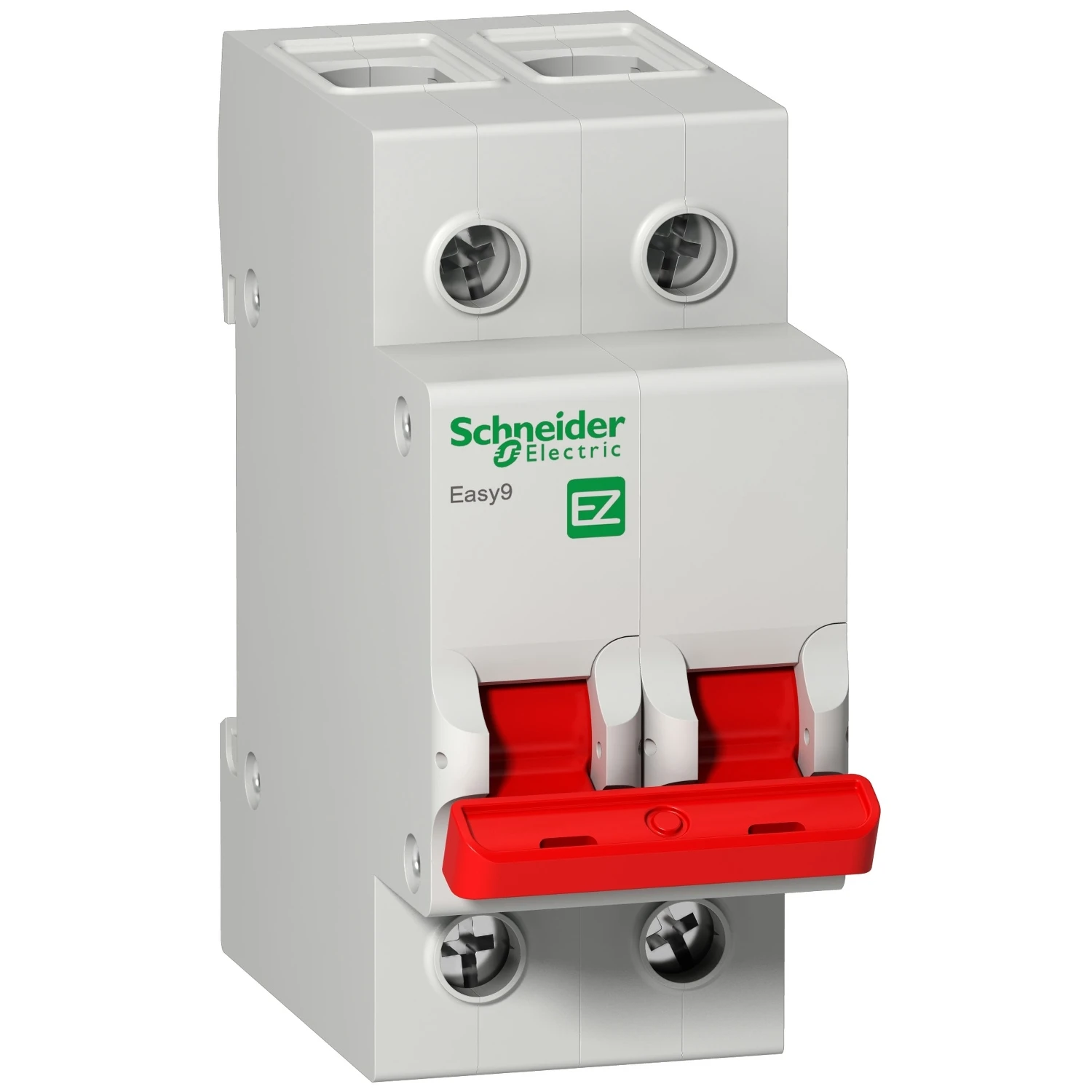

Switch Disconnector Double Pole 100A 400V
Switch Disconnector Double Pole 100A 400V
Switch Disconnector Double Pole 100A 400V - Image 2
Switch Disconnector Double Pole 100A 400V - Image 3

Switch Disconnector Double Pole 100A 400V

£8.46 Incl. VAT

The Schneider Electric EZ9S16291 is a 100 amp double pole main switch disconnector that will fit any Schneider Electric Easy9 consumer unit. · · · Positive contact indication · · Suitable for isolation according to BSEN 60947-3 · · Manual control on front face · · 100A Rated · · 2 Pole · · For use with Easi 9 range of consumer units · · IP20 · · The Ue rated operational voltage is 400VAC. · · The Ui rated insulation voltage is 500VAC. · · It has a Uimp rated impulse withstand voltage of 4kV. The operating frequency is 50Hz or 60Hz.

58 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9S16291 Categories: , , Brand: Part Number: 2500605632

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current Iu 100 A Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 2 Version as reversing switch No Suitable for front mounting centre Yes Voltage release optional No Motor drive optional No Rated operating voltage 400 – 400 V Max. rated operation voltage Ue AC 400 V Rated short-time withstand current lcw 1.2 kA Number of auxiliary contacts as change-over contact 0 Suitable for front mounting 4-hole Yes Suitable for distribution board installation Yes Suitable for intermediate mounting Yes Interlockable No Suitable for floor mounting No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Version as main switch No Version as maintenance-/service switch No · Technical Data Sheet – Click to Download
