Switch Disconnector Four Pole 225A 415V

£758.78 Incl. VAT

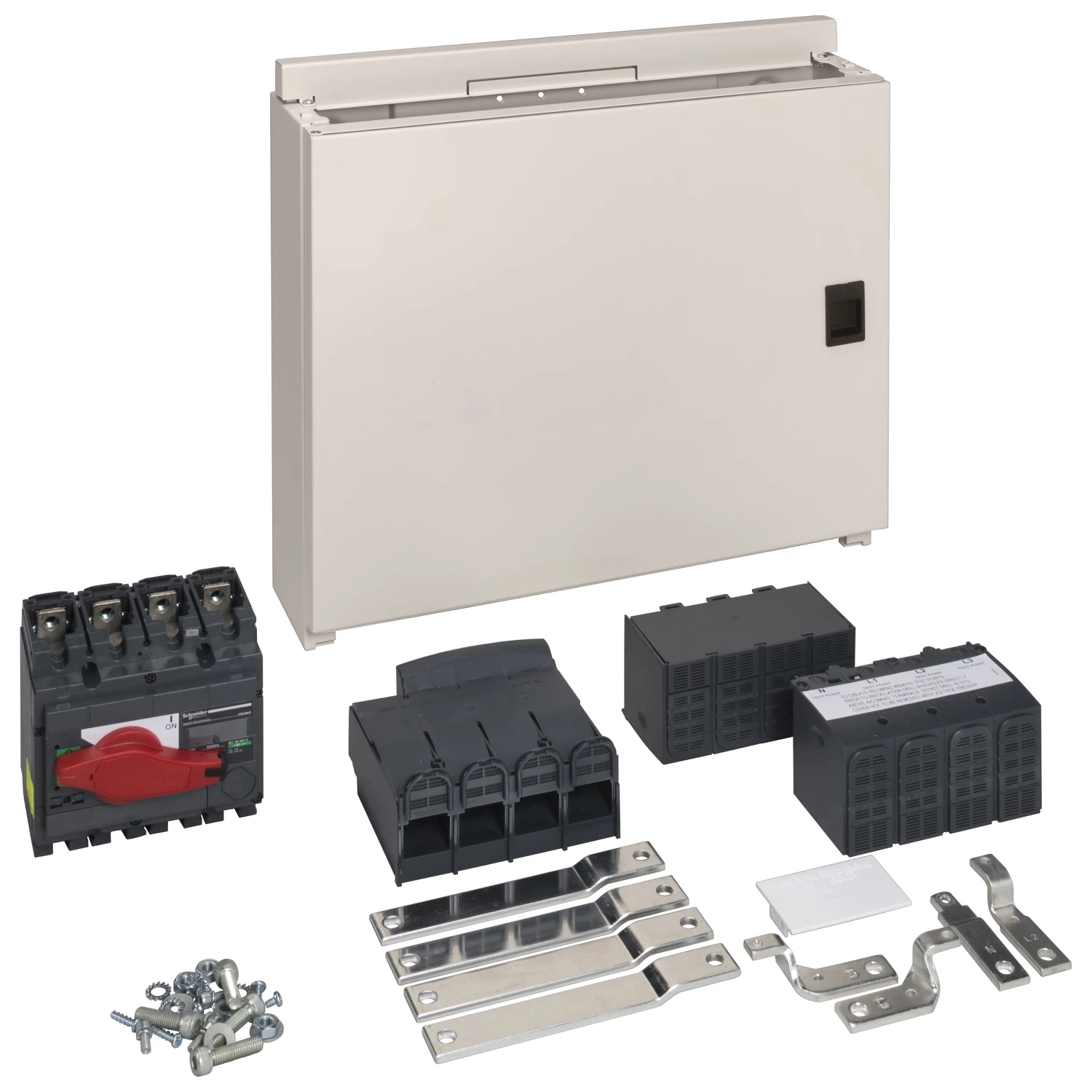

The Schneider Electric Switch Disconnector SEA9PNI2004 200A 4P is for the Acti9 Isobar and Isobar P distribution boards together with required insulation and terminal accessorries. This requires an extension box which is provided with the incomer. · · · Plug-on neutral · · Ease of installation · · Rated Operational Current: 200 A at 415 V AC · · 4 Pole · · BS EN 60947-3 · · 18 Months Warranty · · Green Premium Product

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9PNI2004 Categories: , , Brand: Part Number: 2501108964

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated short-time withstand current lcw 25 kA Rated permanent current Iu 200 A Conditioned rated short-circuit current Iq 25 kA Max. rated operation voltage Ue AC 455 V Number of auxiliary contacts as change-over contact 0 Rated permanent current at AC-23, 400 V 200 A Number of auxiliary contacts as normally open contact 0 Number of auxiliary contacts as normally closed contact 0 Number of poles 4 Version as main switch Yes Rated operating voltage 415 – 415 V Suitable for floor mounting No Voltage release optional No Motor drive optional No Version as reversing switch No Motor drive integrated No Version as emergency stop installation No Version as safety switch No Version as maintenance-/service switch No Suitable for front mounting 4-hole Yes Suitable for front mounting centre Yes Suitable for distribution board installation Yes Suitable for intermediate mounting No Interlockable No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222729
