Switch Disconnector Four Pole 250A 415V
Switch Disconnector Four Pole 250A 415V
Switch Disconnector Four Pole 250A 415V - Image 2
Switch Disconnector Four Pole 250A 415V - Image 3

Switch Disconnector Four Pole 250A 415V

£887.12 Incl. VAT

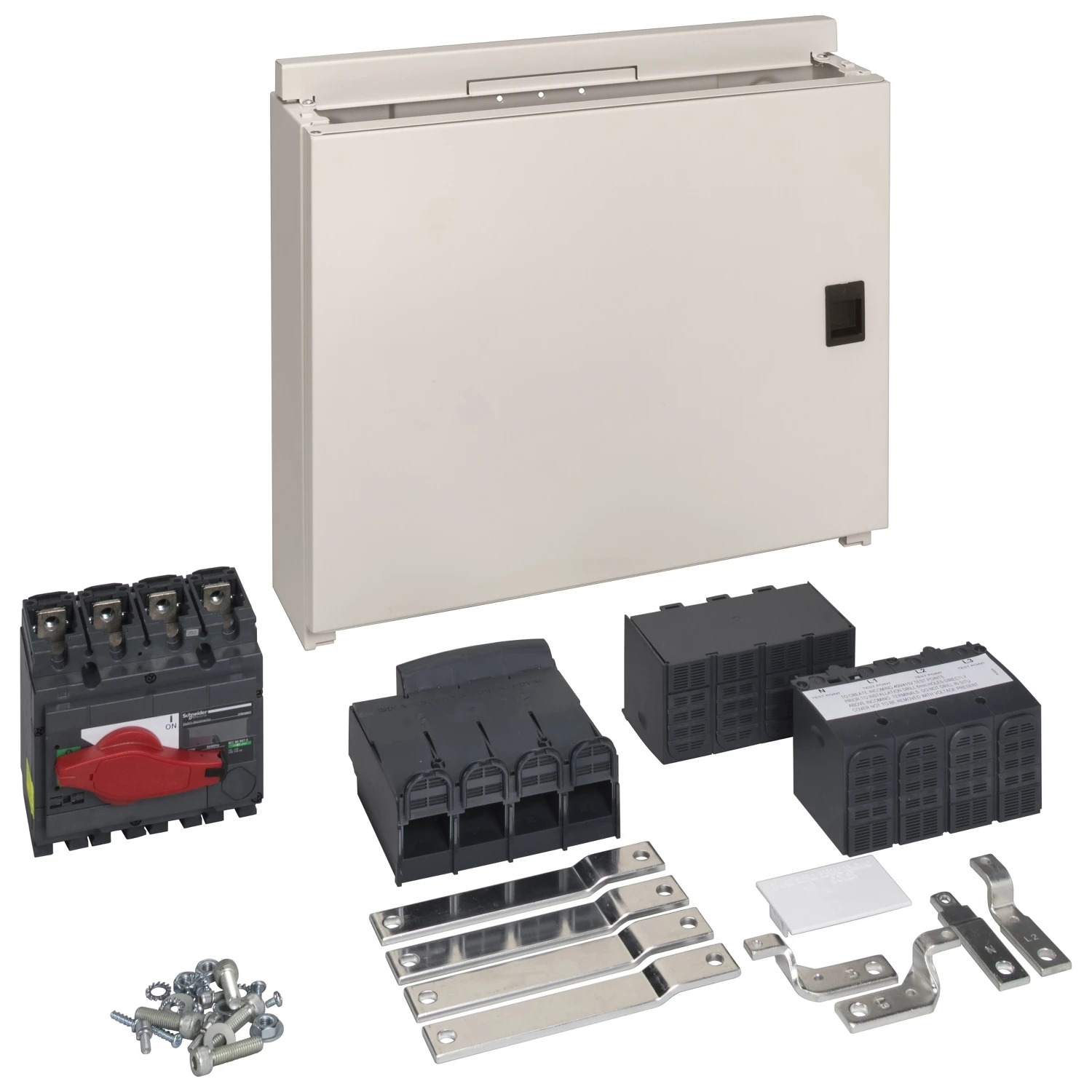

The Schneider Electric Switch Disconnector SEA9PNI2504 250A 4P is for the Acti9 Isobar and Isobar P distribution boards together with required insulation and terminal accessorries. This requires an extension box which is provided with the incomer. · · · Plug-on neutral · · Ease of installation · · Rated Operational Current: 250 A at 415 V AC · · 4 Pole · · BS EN 60947-3 · · 18 Months Warranty · · Green Premium Product

19 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9PNI2504 Categories: , , Brand: Part Number: 2501108967

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated short-time withstand current lcw 25 kA Number of auxiliary contacts as normally closed contact 0 Conditioned rated short-circuit current Iq 25 kA Number of poles 4 Rated permanent current Iu 250 A Max. rated operation voltage Ue AC 455 V Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally open contact 0 Rated permanent current at AC-23, 400 V 250 A Rated operating voltage 415 – 415 V Voltage release optional No Version as reversing switch No Motor drive optional No Version as maintenance-/service switch No Version as main switch Yes Suitable for intermediate mounting No Suitable for distribution board installation Yes Suitable for front mounting centre Yes Suitable for front mounting 4-hole Yes Interlockable No Version as safety switch No Version as emergency stop installation No Motor drive integrated No Suitable for floor mounting No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222729
