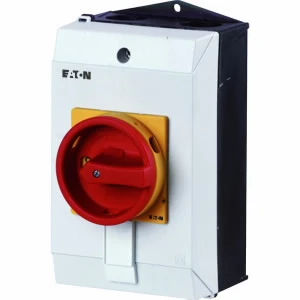

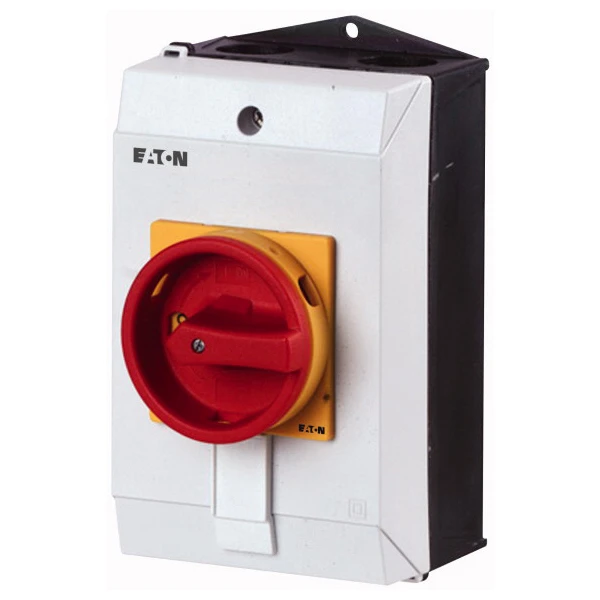

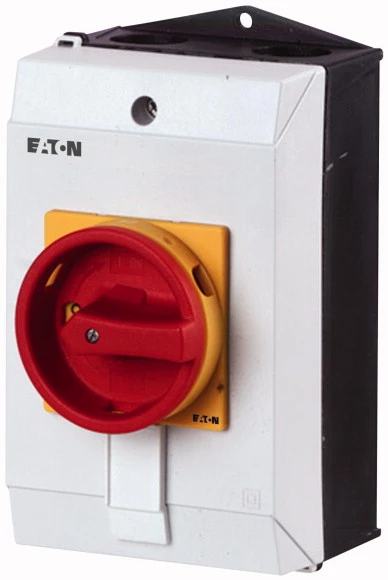

Eaton Switch Emergency Stop Surface 3Ph Triple Pole IP65 20A 380-400V 50/60Hz

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Colour control element Red Device construction Complete device in housing Type of control element Door coupling rotary drive Degree of protection (IP), front side IP65 Degree of protection (NEMA) 12 Type of electrical connection of main circuit Screw connection Rated operation power at AC-3, 400 V 5.5 kW Rated permanent current Iu 20 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Number of poles 3 Number of switches 1 Rated short-time withstand current lcw 0.32 kA Rated operation power at AC-23, 400 V 5.5 kW Conditioned rated short-circuit current Iq 6 kA Number of auxiliary contacts as change-over contact 0 Max. rated operation voltage Ue AC 690 V Rated permanent current at AC-21, 400 V 20 A Switching power at 400 V 5.5 kW Rated permanent current at AC-23, 400 V 13.3 A Rated operating voltage 690 – 690 V Motor drive integrated No Version as emergency stop installation Yes Version as main switch Yes Version as reversing switch No Motor drive optional No Voltage release optional No Suitable for distribution board installation No Suitable for intermediate mounting No Suitable for front mounting 4-hole No Suitable for front mounting centre No Version as safety switch No Version as maintenance-/service switch Yes Interlockable Yes · Technical Data Sheet – Click to Download
