Telemecanique Sensors Inductive Sensor Xs8 80X80X26 Pbt Sn60mm 24-240V AC/DC Cable 2M
Awaiting product image

Telemecanique Sensors Inductive Sensor Xs8 80X80X26 Pbt Sn60mm 24-240V AC/DC Cable 2M

£177.84 Incl. VAT

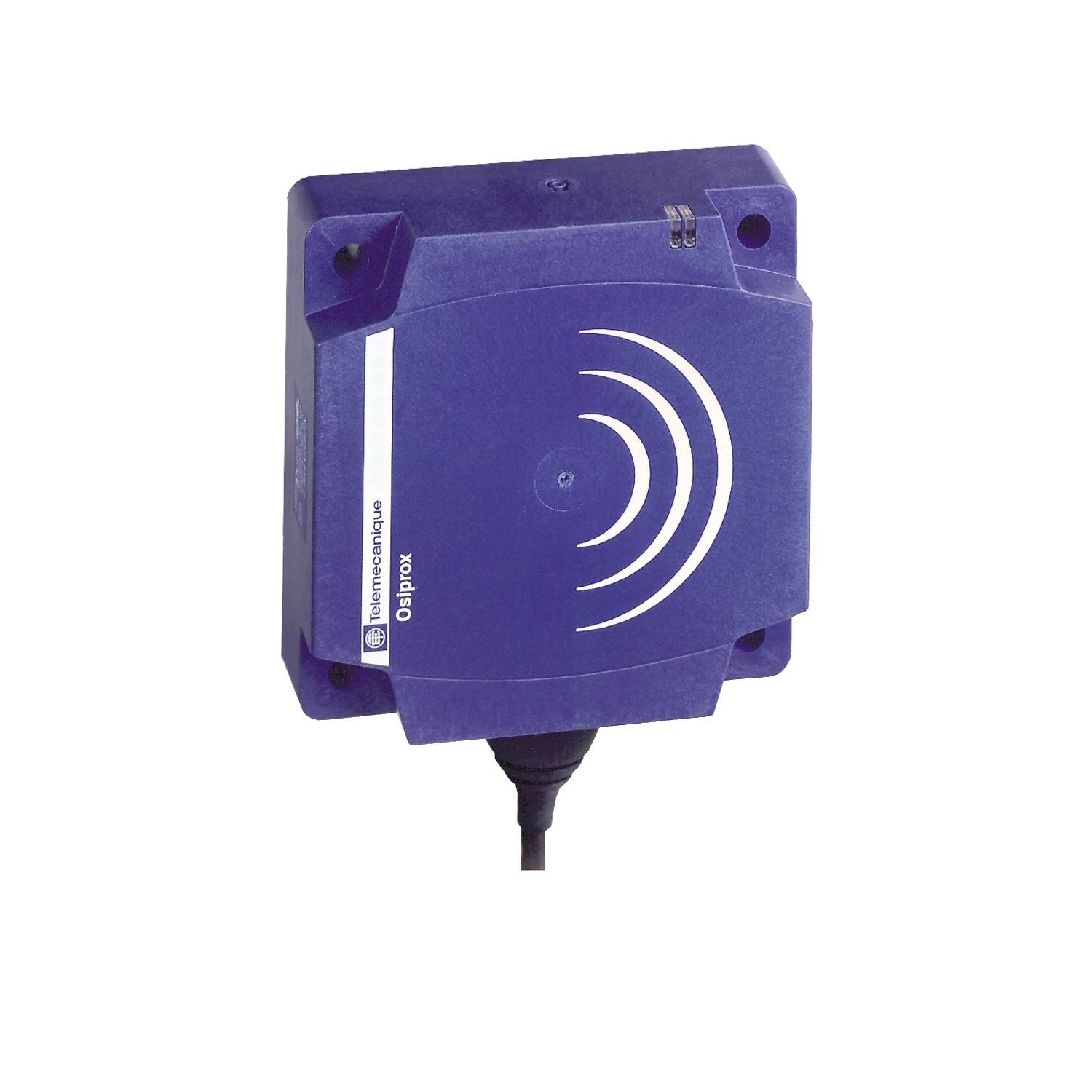

This XS flat (80 x 80 x 26 mm) inductive proximity sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This general purpose flat inductive proximity sensor has an increased range. It is mountable directly on a surface, thanks to 4 screws fixing points. It provides mechanical resistance and chemical withstand thanks to PBT case. It has a yellow LED for output status indication for easier sensor setup and troubleshooting. IP68 protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. Its increased sensing range makes it ideal for process where precise circulation of objects is not possible. It is CCC, ECOLAB, CSA, UL certified. · · · This XS flat (80 x 80 x 26 mm) inductive proximity sensor has a PBT case. · · It has a supply voltage of 24V to 240V AC/DC. · · This general purpose flat inductive proximity sensor has an increased range. · · It is mountable directly on a surface, thanks to 4 screws fixing points. · · It provides mechanical resistance and chemical withstand thanks to PBT case. · · Depth: 26mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS8D1A1MAL2 Categories: , , , , , , Brand: Product Code: 2500136843

Description

Technical Specifications  Technical Specifications Inductive proximity switch SIL according to IEC 61508 None Type of interface for safety communication None Interface type None Explosion safety category for gas None Explosion safety category for dust None Performance level acc. to EN ISO 13849-1 None Housing material Plastic Construction type housing Special construction Type of switching output 2-wire Mechanical mounting condition for sensor Not flat Interference resistance to magnetic fields Immune against magnetic DC- and AC-field Type of switch function Normally open contact Voltage type AC/DC Type of electric connection Cable radial Type of actuation Metallic Target Switching frequency 150 Hz Diameter sensor – mm Number of contact energized outputs with signalling function 0 Number of semiconductor outputs with signalling function 0 Height of sensor 103 mm Number of protected semiconductor outputs 0 Number of protected contact energized outputs 0 Width sensor 80 mm Length of sensor 40 mm Max. output current at protected output 200 mA Switching distance 60 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 24 V Rated control supply voltage at DC 12 – 24 V With monitoring function downstream switching devices No Cascadable No Compression-resistant No Suitable for safety functions No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188160
