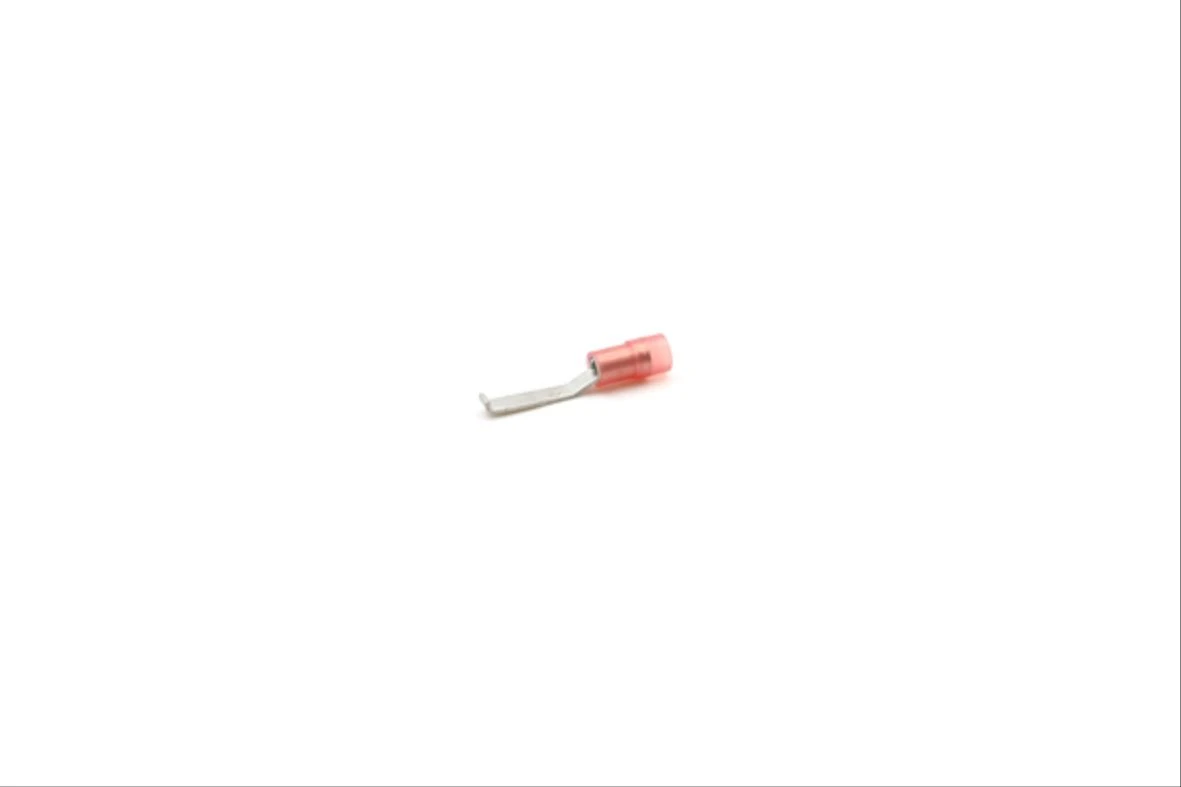

Terminal 0.25-1.5mm2 Red
Terminal 0.25-1.5mm2 Red
Terminal 0.25-1.5mm2 Red - Image 2
Terminal 0.25-1.5mm2 Red - Image 3
Terminal 0.25-1.5mm2 Red - Image 4

Terminal 0.25-1.5mm2 Red

£0.31 Incl. VAT

0.25mm²-1.5mm² Reinforced Polyamide PA6.6 insulated hooked blade terminal 3.0mm x 16.8mm blade size red · · · Insulation Sleeve Nylon PA6.6 · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor

2400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RKY-PPL30 Categories: , , Brand: Part Number: 2501000873

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Material Copper Sleeve form Short Flange shape Pin shape Insulation PA Surface protection Tinned Colour insulation Red Bolt dimension (metric) – Max. current (Imax) – A AWG-range 22 – 14 According to DIN No Suitable for insulated varnish No Suitable for fine strand conductors Yes Suitable for round conductors Yes Useful for stranded conductors Yes Nominal cross section 0.25 – 1.5 mm² Suitable for high temperatures (to 650 °C) No Suitable for flat conductors No Reel packaging No For pull protected connections No Suitable for solid cores No · Technical Data Sheet – Click to Download
