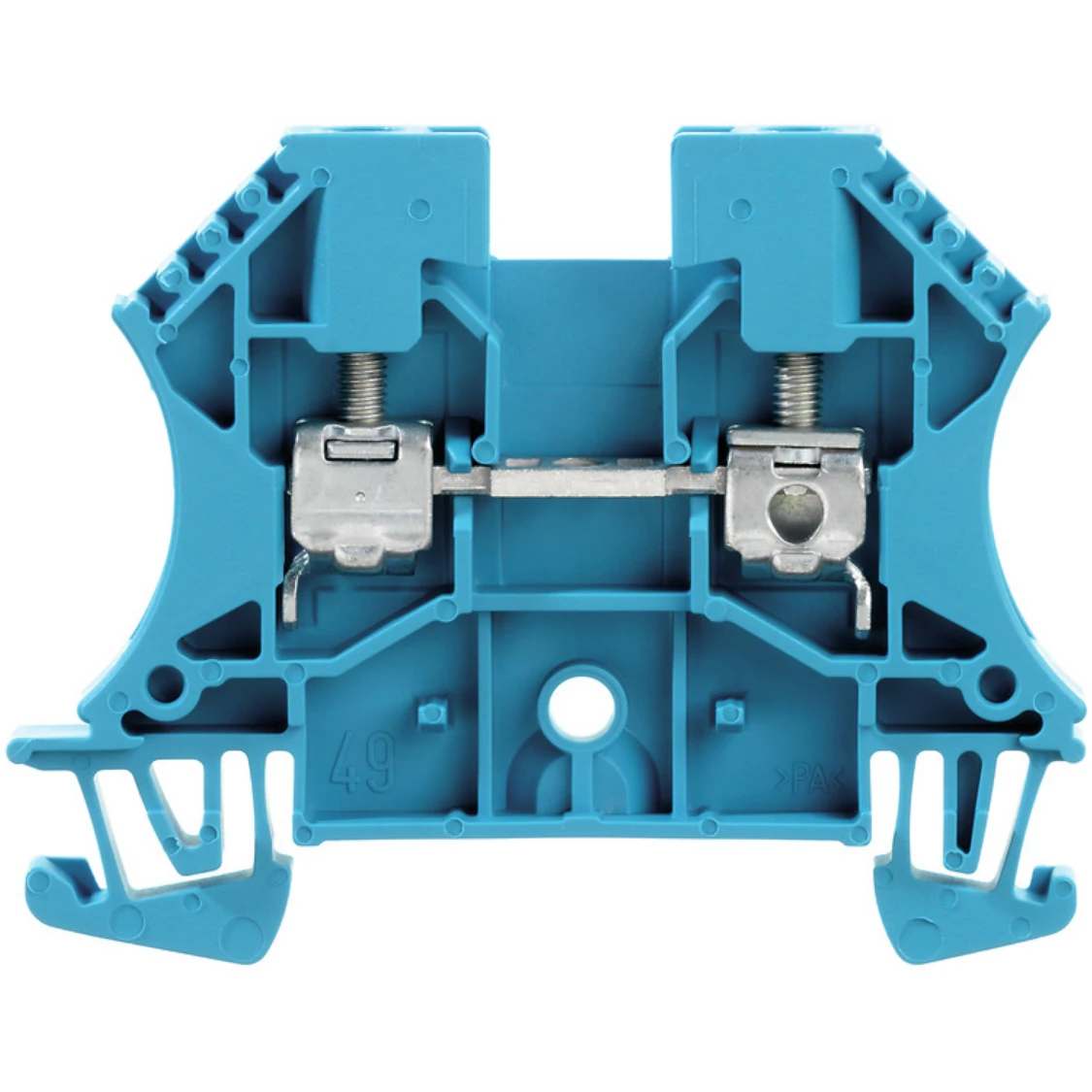

Weidmuller Terminal 26-10AWG Wemid 1g 6.1×46.5x56mm Blue

Technical Specifications  Technical Specifications Feed-through terminal block Colour Blue Material insulation body Thermoplastic Mounting method Direct mounting Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Rated voltage 800 V Number of levels 1 Rated current In 32 A Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 6 mm² Connectable conductor cross section solid-core 0.5 – 6 mm² Connectable conductor cross section multi-wired 1.5 – 6 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
