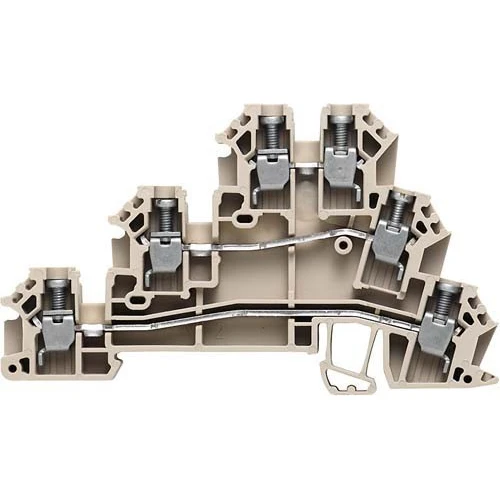

Terminal 26-12AWG Wemid 16g 6.2×48.5×82.5mm Dark Beige

Description

Technical Specifications  Technical Specifications Sensor/actuator terminal block Type of electrical connection 1 Plug-in connection Type of electrical connection 2 Plug-in connection Material insulation body Thermoplastic Inflammability class of insulation material acc. with UL94 V0 Connection position Above Colour Beige LED switching for No Length 82.5 mm Width/grid dimension 6.1 mm Rated voltage 250 V Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 120 °C Rated current In 24 A Number of clamp positions per level 2 Number of levels 1 Height at lowest possible mounting height 49 mm Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 0.5 – 4 mm² Closing plate required Yes Explosion-tested version ‘Ex e’ No With PE connection No With shield connection No Internally connected stages Yes With power supply function No Disconnect function No Cross connectable Yes · Technical Data Sheet – Click to Download
