Weidmuller Terminal 26-14AWG Wemid 9g 5.1x46.5x60mm Dark Beige
Weidmuller Terminal 26-14AWG Wemid 9g 5.1x46.5x60mm Dark Beige
Weidmuller Terminal 26-14AWG Wemid 9g 5.1x46.5x60mm Dark Beige - Image 2

Weidmuller Terminal 26-14AWG Wemid 9g 5.1×46.5x60mm Dark Beige

£2.24 Incl. VAT

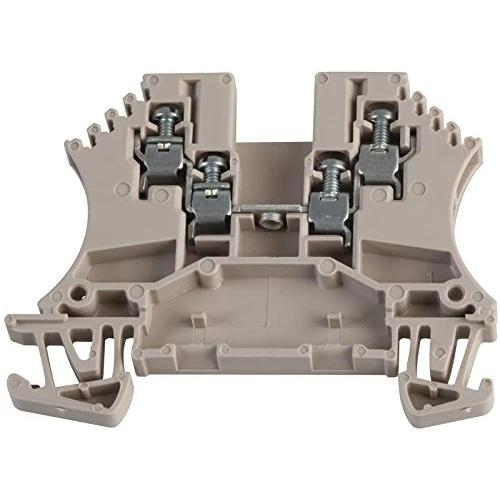

Weidmuller 1031400000 dark beige TS 35 snap-on mounting modular feed through terminal is made of Wemid body. The WDU 1.5/ZZ features M2.5 clamping screw, 26 to 14AWG wire connection cross section, 0.4 to 0.6Nm tightening torque, 8kV rated impulse withstand voltage and 23A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 26-14 AWG · · Height: 60mm · · Material: Wemid · · Width: 5.1mm · · Weight: 9g · · Depth: 46.5mm

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1031400000 Categories: , , Brand: Product Code: 2500186811

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Colour Yellow Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Rated voltage 800 V Rated current In 17.5 A Number of clamp positions per level 4 Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 1.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 1.5 mm² Connectable conductor cross section solid-core 0.5 – 2.5 mm² Connectable conductor cross section multi-wired 0.5 – 2.5 mm² Internally connected stages No Explosion-tested version ‘Ex e’ Yes Closing plate required Yes · Technical Data Sheet – Click to Download
