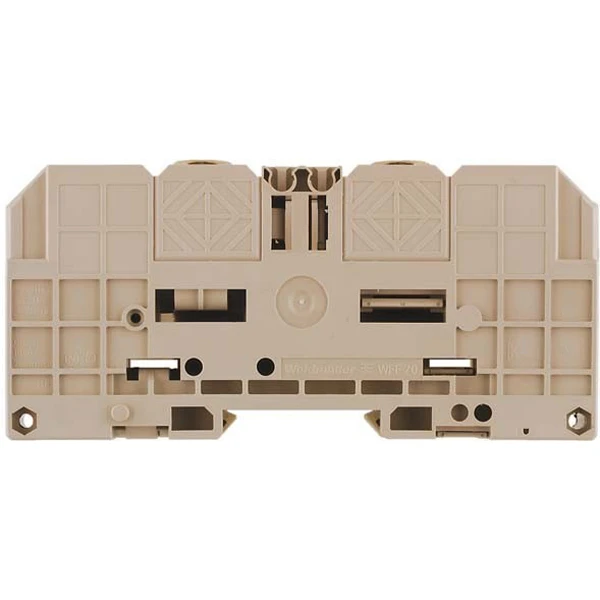

Terminal Stud Wff 70 Threaded Connect 70mm² 192A 1000V
Terminal Stud Wff 70 Threaded Connect 70mm² 192A 1000V
Terminal Stud Wff 70 Threaded Connect 70mm² 192A 1000V - Image 2

Terminal Stud Wff 70 Threaded Connect 70mm² 192A 1000V

£16.91 Incl. VAT

Weidmuller 1028400000 170A bolt-type screw feed-through terminal with 70mm² rated cross-section, threaded stud connection, closed and snap-on mounting. It is It is made from wemid. -50 to 120°C continuous operating temperature. Conforms to IEC 60947-7-1. · · · Colour: Dark Beige, Material: Wemid · · Conductor Size: 14 to 0AWG · · Connection Type: Screw · · Current Rating: 192A · · Height: 132mm, Length: 132mm, Width: 31.8mm · · Mounting Type: Snap-On · · Voltage Rating: 1,000V · · Weight: 158.5g · · Depth: 61mm · · CE: yes

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1028400000 Categories: , , Brand: Part Number: 2500187029

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Connection position Inclined Colour Beige Inflammability class of insulation material acc. with UL94 V0 Type of electrical connection 1 Bolt connection Type of electrical connection 2 Bolt connection Rated current In 192 A Rated voltage 1000 V Length 132 mm Height at lowest possible mounting height 61 mm Width/grid dimension 31.8 mm Number of levels 1 Number of clamp positions per level 2 Operating temperature -50 – 120 °C Connectable conductor cross section multi-wired 10 – 70 mm² Connectable conductor cross section solid-core 4 – 70 mm² Connectable conductor cross section fine-strand without cable end sleeve 4 – 95 mm² Connectable conductor cross section fine-strand with cable end sleeve 4 – 95 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required No · Technical Data Sheet – Click to Download
