Description

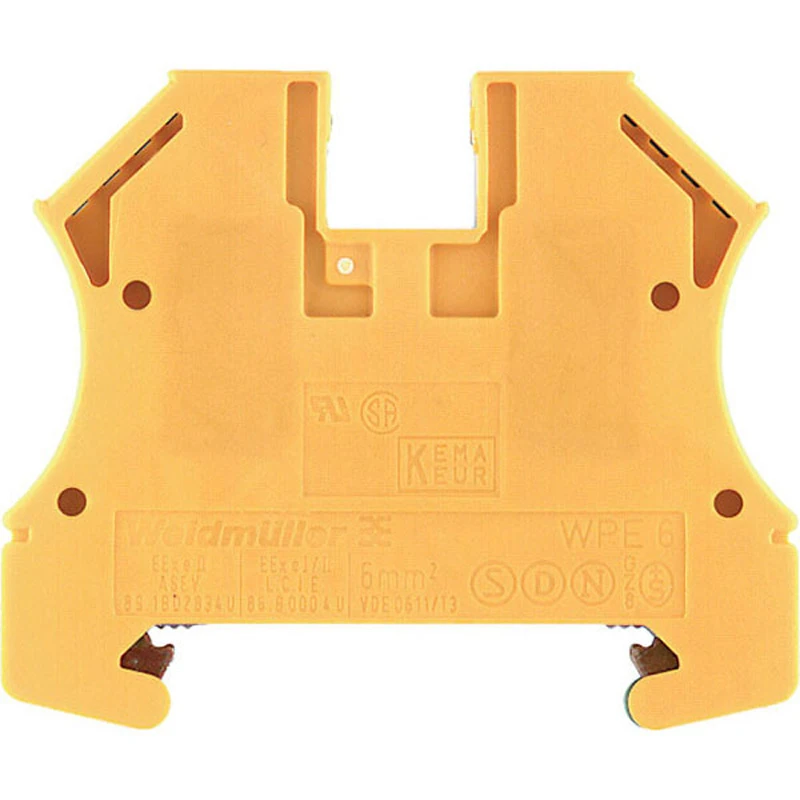

Technical Specifications  Technical Specifications Earth terminal block Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Colour Green/yellow Connection position Sideways Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Length 56 mm Number of clamp positions per level 2 Width/grid dimension 7.9 mm Connectable conductor cross section multi-wired 0.5 – 10 mm² Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Operating temperature -50 – 120 °C Number of levels 1 Height at lowest possible mounting height 56 mm Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Closing plate required No PEN function possible No · Technical Data Sheet – Click to Download
