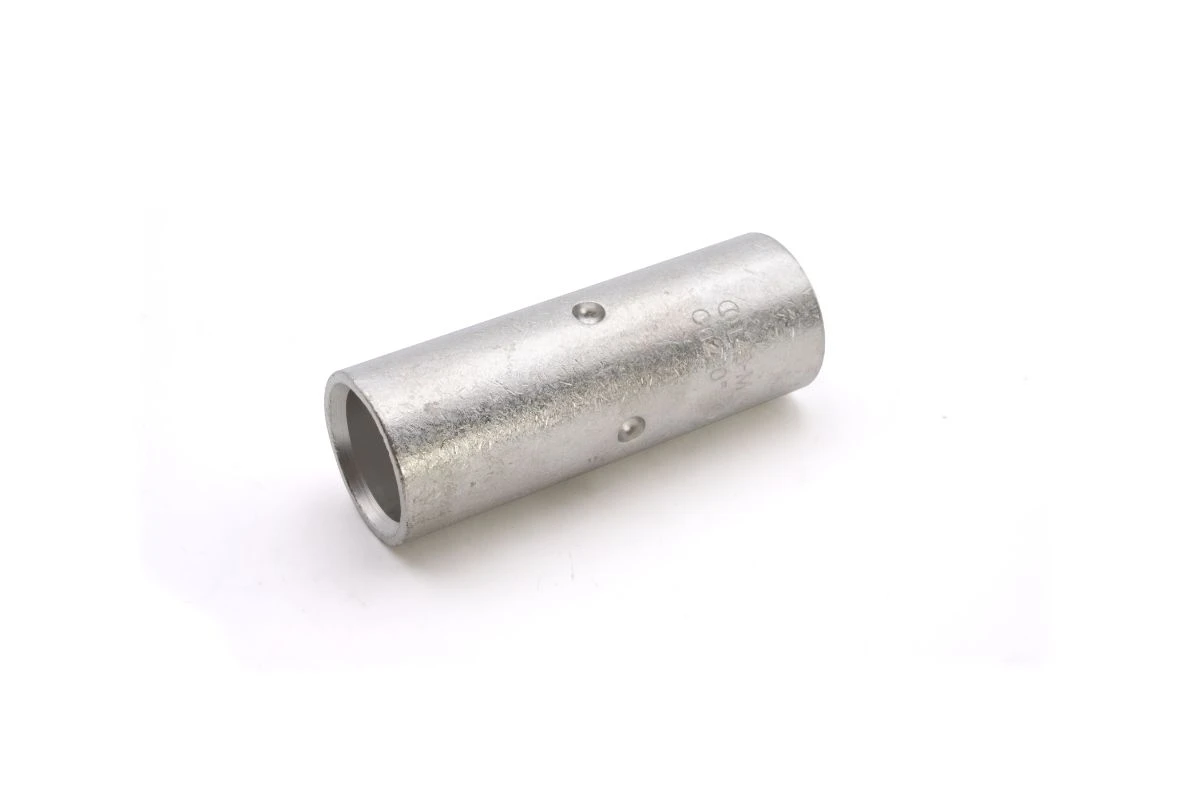

Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm
Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm
Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm - Image 2
Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm - Image 3
Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm - Image 4

Through Connector. Copper Conductor: 185mm² Diameter: 19.2mm

£7.42 Incl. VAT

185mm² Copper tube through connector · · · Annealed to guarantee optimum ductility · · Facilitated introduction of the conductor · · -50°C to +150°C Temperature Range · · Maximum Voltage Rating: 11kV · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Fully Insulated: no · · CE: yes

29 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: L37-M Categories: , , Brand: Part Number: 2500046680

Description

Technical Specifications  Technical Specifications Crimp splices for copper conductor Voltage row Up to 600 V Sleeve form Long Insulation None Material Copper Type of connection Percussion connector Surface protection Tinned Model Standard version Number of branches – AWG-range 350 – 300 For pull protected connections No Suitable for round conductors Yes Suitable for high temperatures (to 650 °C) No Suitable for insulated varnish No Useful for stranded conductors Yes Nominal cross section 185 – 185 mm² Nominal current – A Oil stop/centre bar Yes Suitable for solid cores No Suitable for fine strand conductors Yes Suitable for flat conductors No · Technical Data Sheet – Click to Download
