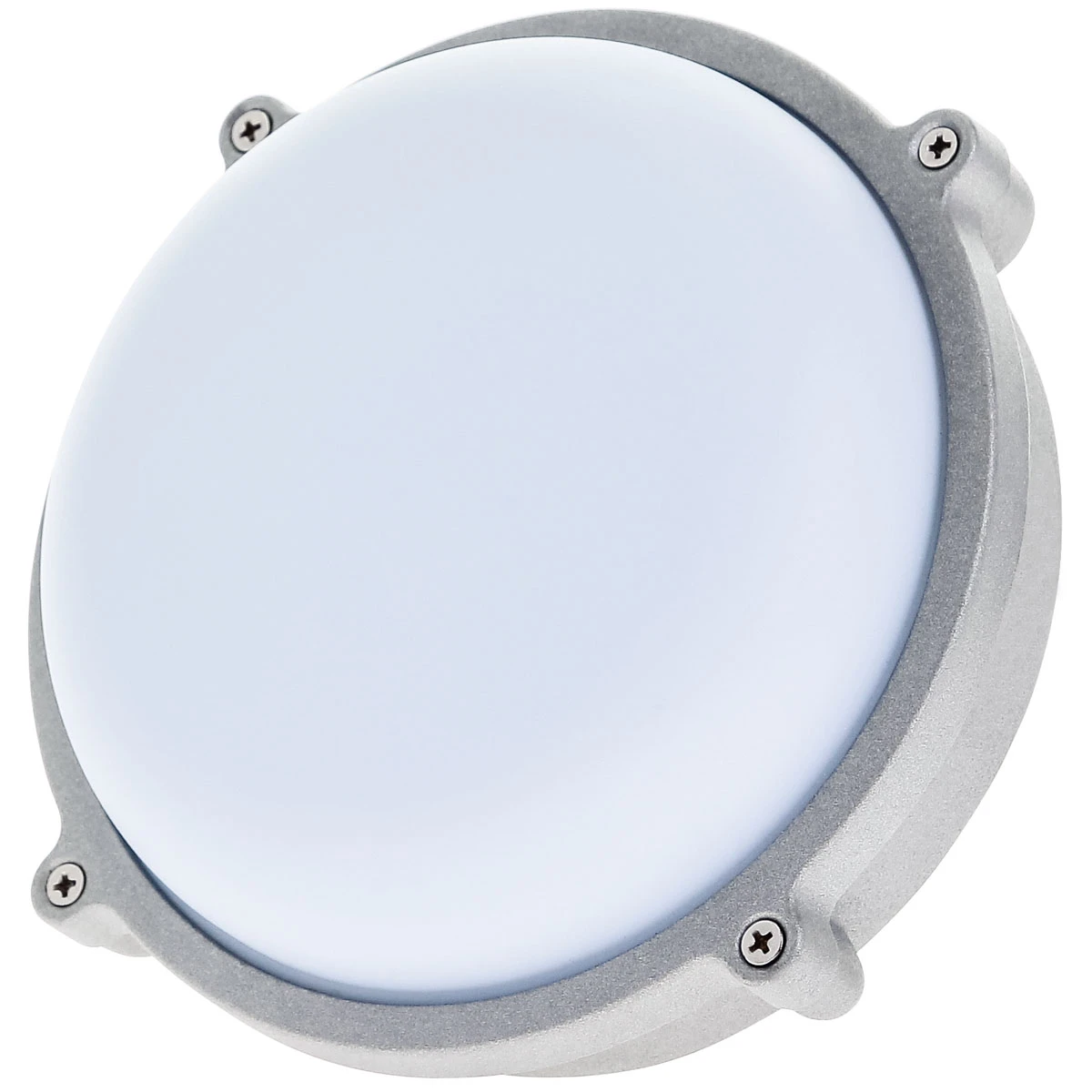

Timeguard LEDBHR15W 15W Bulkhead LED 185 x 185 x 65mm Silver

Description

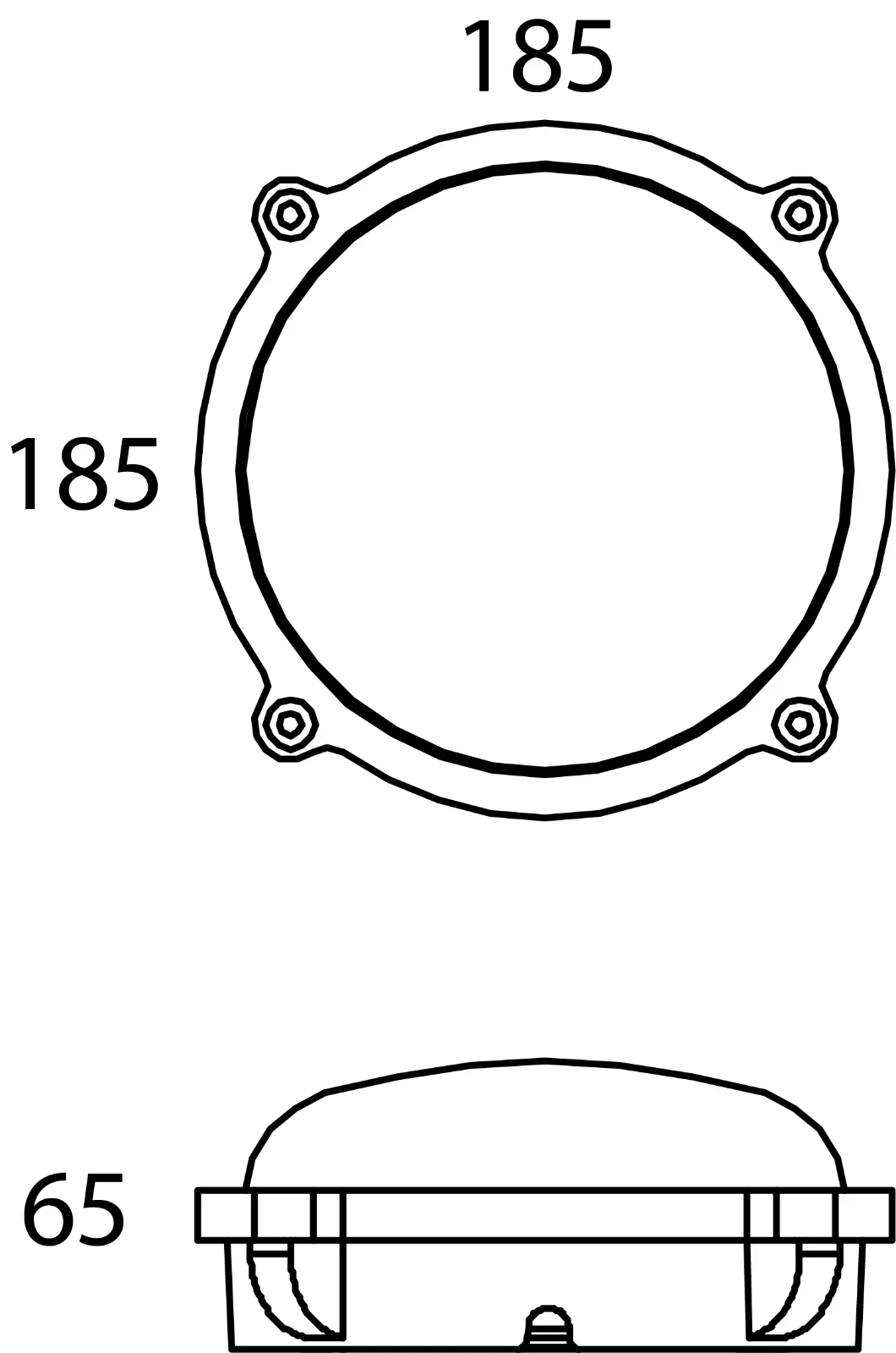

Technical Specifications  Technical Specifications Ceiling / wall luminaire Reflector None Connection type Screwed terminal Housing colour Silver Cover material Plastic opal Protection class according to IEC 61140 I Beam angle adjustable No Colour temperature switchable No Beam angle Extreme wide beam >80° Degree of protection (IP), front side IP65 Degree of protection (IP rating) IP65 Light source type LED non-replaceable Housing material Aluminium Width 185 mm Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Recess height/depth – mm Maximum system power 15 W Luminous intensity – cd Luminaire efficacy 67 lm/W Total harmonic distortion – Rated life time L70/B50 at 25 °C – h Recess width – mm Height/depth 185 mm Recess length – mm Rated luminous flux acc. IEC 62722-2-1 – lm Outer diameter – mm Length 65 mm Nominal voltage 230 – 230 V Colour temperature 5000 – 5000 K Suitable for suspended mounting No With movement sensor No Emergency power supply integrated No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Luminaire may be covered with thermally insulating material No Light source included Yes With light sensor No Suitable for recessed mounting No Suitable for wall mounting Yes Constant luminous flux control No Dimming leading edge No Dimming trailing edge No Dimming touch and dim No Dimming Zigbee No Dimming RF No Dimming LineSwitch No IFTTT support available No Control gear included No Dimming mains voltage modulation No Fit for workplace acc. EN 12464-1 No Dimming sine wave reduction No Dimming DMX No Dimming with push-button No Suitable for ceiling mounting Yes Suitable for surface mounting Yes Dimming DSI No Dimming potentiometer (integrated) No Compatible with Amazon Alexa No Compatible with Google Assistant No Dimming DALI-2 No Dimming manufacturer’s proprietary system No Dimming depending on control gear No Dimming DALI No Replaceable control gear No Compatible with Apple HomeKit No Dimming 1-10 V No No dimming function No Dimming programmable No Dimming 0-10 V No · Technical Data Sheet – Click to Download
