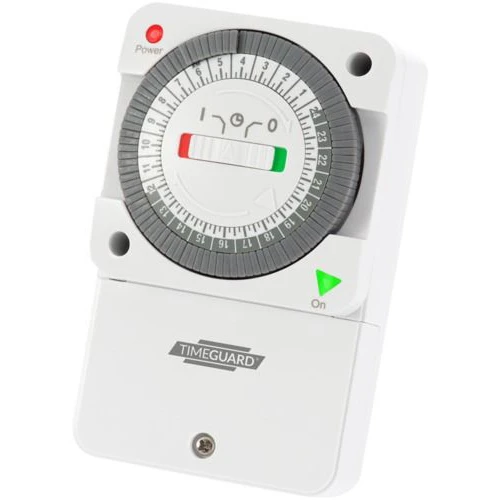

Timeguard Timeswitch 24Hr Slimline General Purpose
Timeguard Timeswitch 24Hr Slimline General Purpose
Timeguard Timeswitch 24Hr Slimline General Purpose - Image 2

Timeguard Timeswitch 24Hr Slimline General Purpose

£51.88 Incl. VAT

Timeguard Slimline General Purpose Timeswitch offers comprehensive 24 hour control. The unit has up to 96 quick-set segments for up to 48 on/off programmable periods and an easy to use captive segment dial. The unit has 4 on and 4 off easy-set programme periods per day, 28 on and 28 off programmes per week with a minimum switching time of one minute. Supplied with Voltage Free Contacts, the timer is a compact and can control outputs of up to 16A. The NTT05 is designed for installation in both existing and new systems as well as general purpose halogen, incandescent, CFL and fluorescent lighting loads. · · · Load rating of 16(8)A · · 96 quick-set segments for up to 48 ON/48 OFF programmes · · Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting · · Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing · · Special Traffic Light slider switch for ON (green), Auto (green and red) and OFF (red) indication · · Switches ON & OFF At Preset Times · · Captive Segment Dial · · Permanent ON/OFF Control · · Voltage Free Contacts · · Not Suitable For Discharge Lighting

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NTT05 Categories: , , Brand: Product Code: 2500534328

Description

Technical Specifications  Technical Specifications Programmable time switch Nominal voltage 230 V Recess depth – mm Rated current 16 A Power reserve – h RAL-number (similar) – Shortest switching interval 15 min Max. power – W Number of contacts as normally closed contact 1 Number of contacts as change-over contact 1 Minimum depth of back box – mm Number of contacts as normally open contact 1 Width of device 74 mm Number of module spaces (modular system) – Height of device 120 mm Depth of device 47 mm Twilight value adjustable – – – lx Frequency 50 – 60 Hz Time setting – – – min Auxiliary input No With connection for light sensor No Random generator No Astro/solar program No Transparent No IFTTT support available No Compatible with Apple HomeKit No Compatible with Google Assistant No Compatible with Amazon Alexa No
