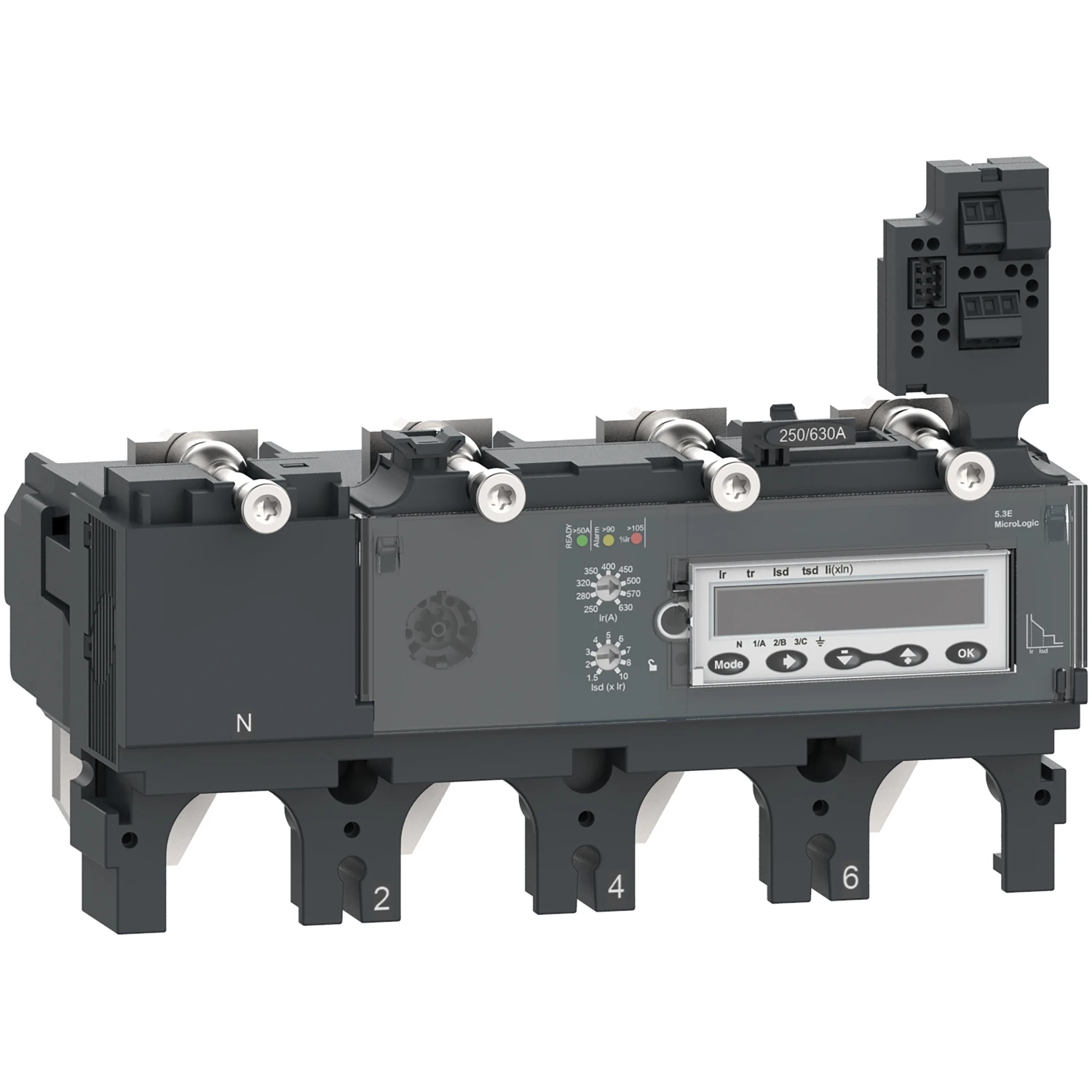

Schneider Electric Trip Unit Micrologic 5.3 E For Compact NSX400/630 Circuit Breakers Electronic Rating 400A 4 Poles 4D

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Voltage type of supply voltage DC Type of motor protection Electronic release Voltage type (operating voltage) AC Short-circuit release function Delayed Number of auxiliary contacts as change-over contact 0 Rated permanent current Iu 400 A Width 184.7 mm Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Number of poles 4 Rated switch current 400 A Depth 112.6 mm Height 136.2 mm Overload release current setting 160 – 400 A Supply voltage AC 60 Hz – – – V Supply voltage DC 24 – 24 V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 600 – 4800 A Current setting delayed short-circuit release 240 – 4000 A External power supply required Yes With ground fault protection function No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205404
