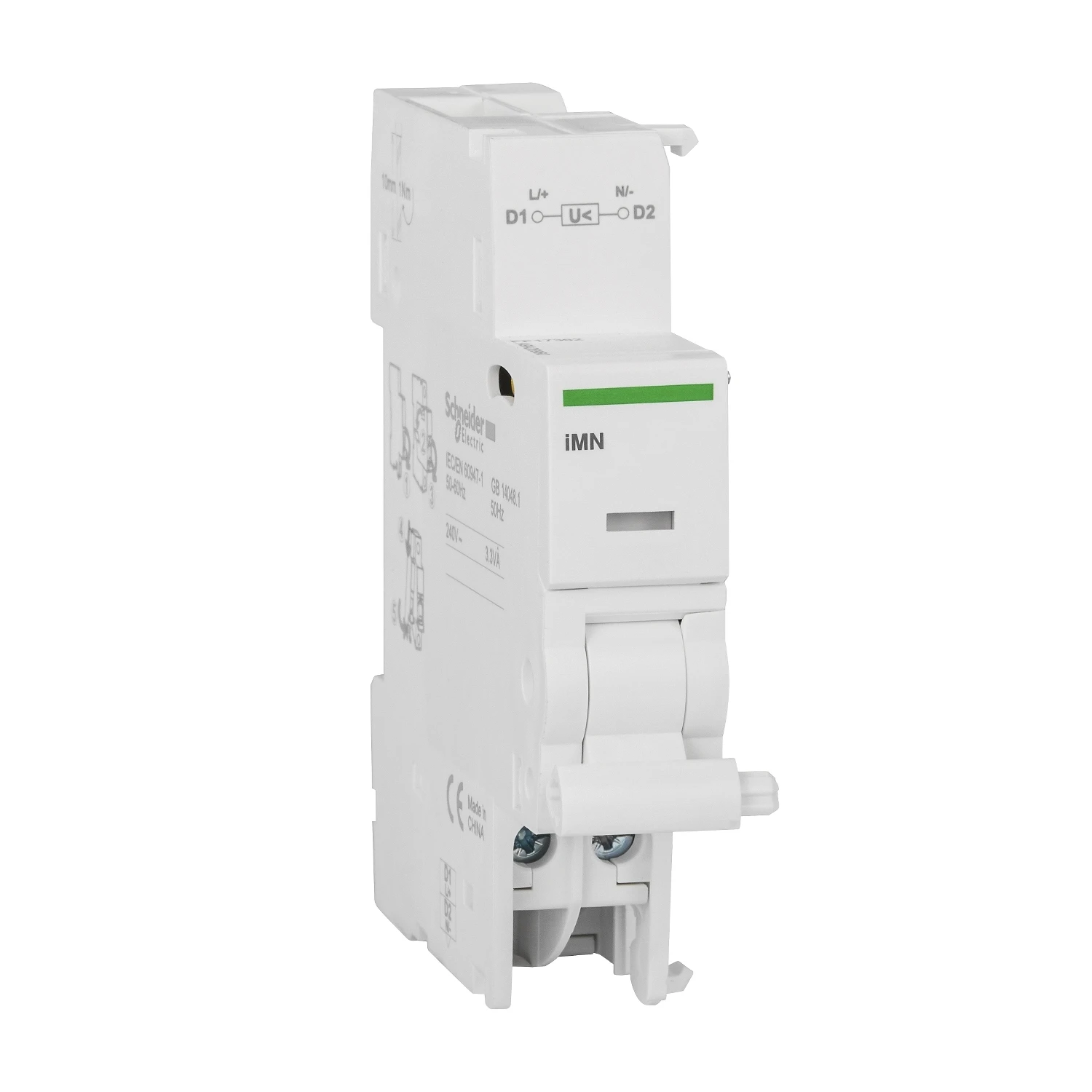

Under Voltage Release Acti9 Imn 220-240VAC
£127.06 Incl. VAT
This Acti 9 iMN electrical auxiliary is an instantaneous undervoltage release. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. It prevents device closing again until its input voltage has been restored. Emergency stoppage by normally open pushbutton. It ensures the safety of power supply circuits for several machines by preventing uncontrolled restarting. The width in 9mm pitches is 2. It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un). The Uc control circuit voltage is 220…240VAC. The Ue rated operational voltage is 200VAC to 240VAC. The operating frequency is 50Hz or 60Hz. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -35°C to + 70°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards. · · · 220…240 V AC 50/60 Hz · · Action Indicator · · Designed for emergency stoppage · · Clip-on DIN rail mounting mode · · EN/IEC 60947-5-1 · · It trips the device with which it is combined when its input voltage decreases (between 70% and 35% of Un).
27 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Auxiliary device for distribution board devices Rated voltage 240 V Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 Rated switch current – A Number of contacts as change-over contact 0 Assembly width (TE) 1 Suitable for max. number of poles main contact unit (total) 4 Suitable for max. current main contact unit 63 A Number of fault-signal switches 0 Attached at delivery No With auto test for earth leakage function No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2190553
