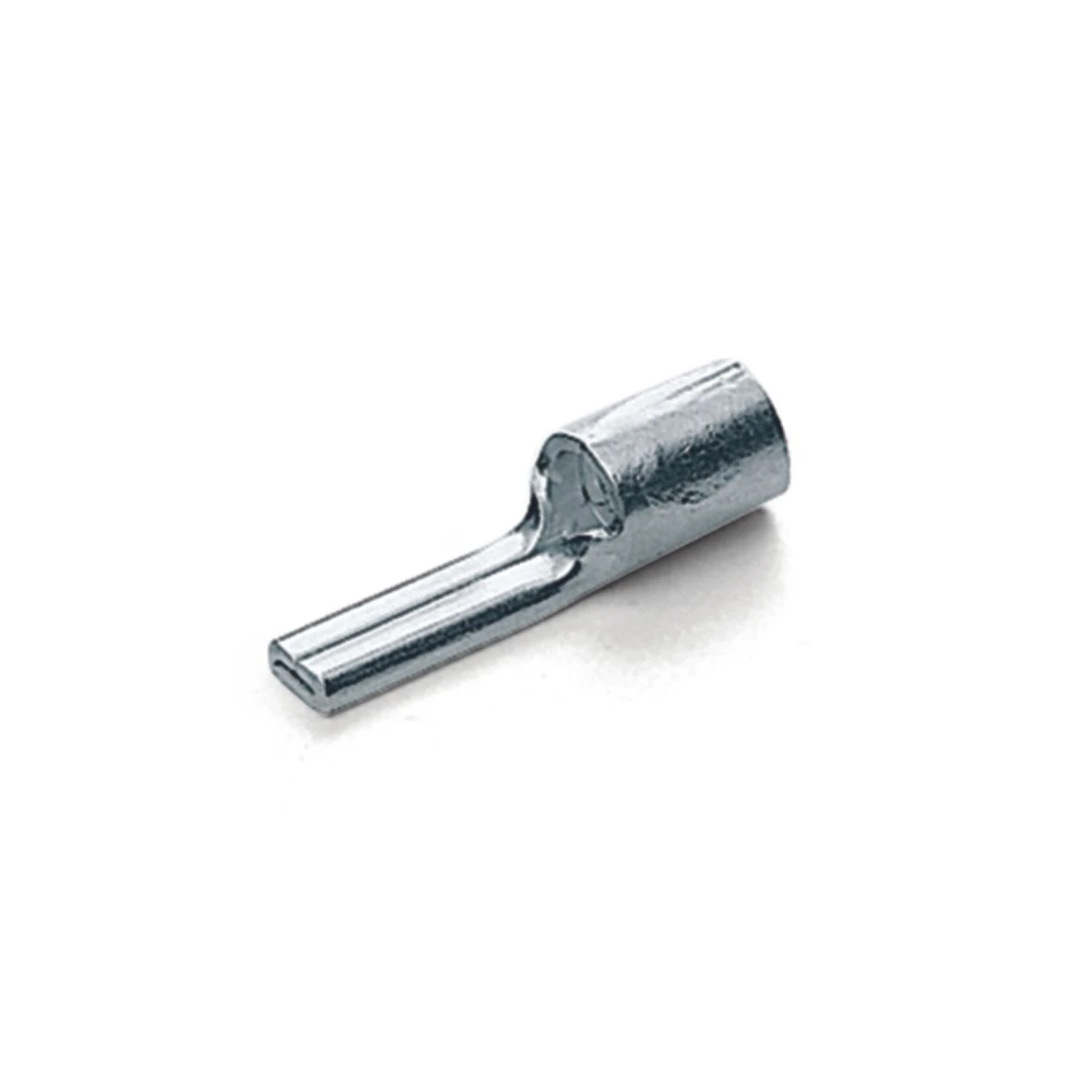

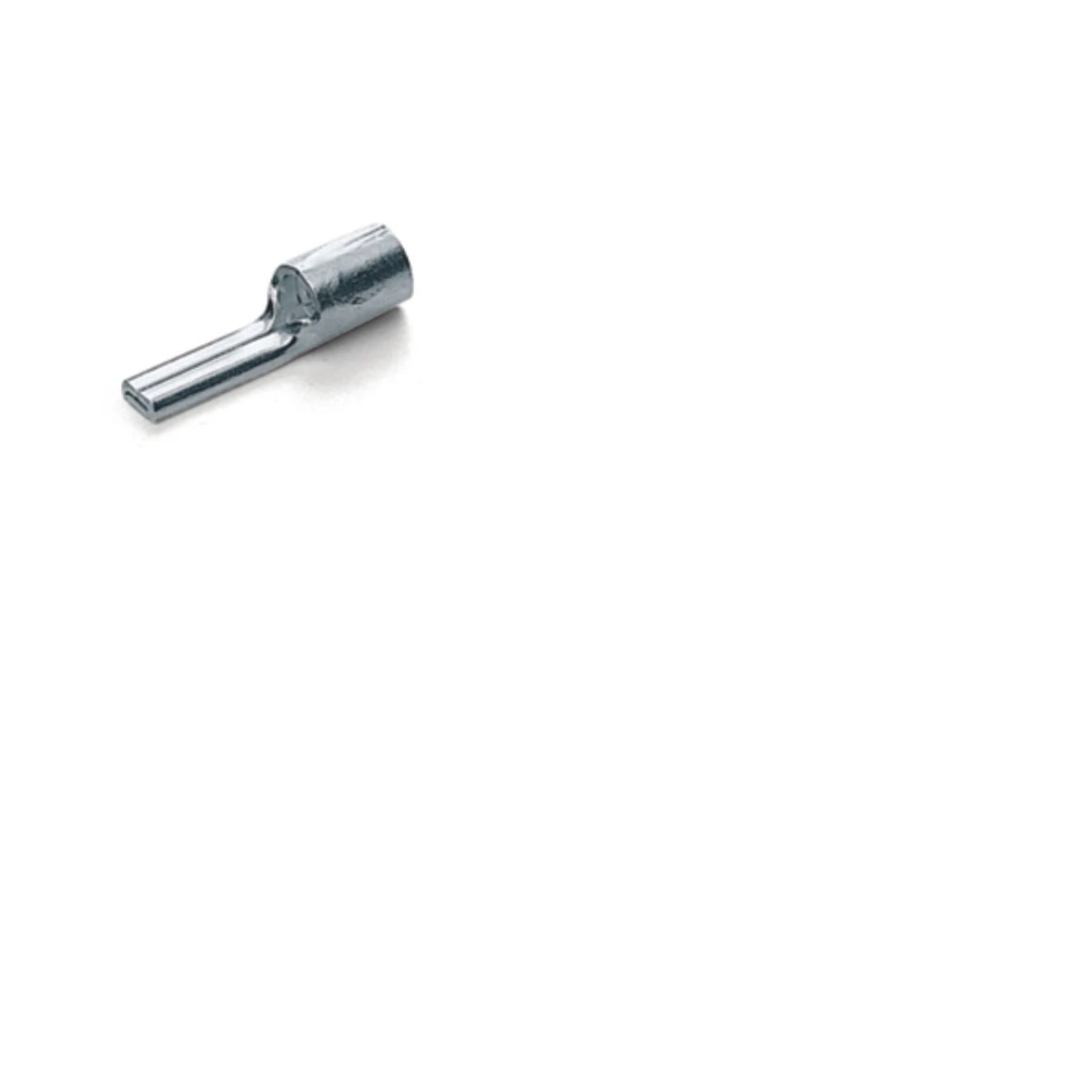

Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm.
Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm.
Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm. - Image 2
Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm. - Image 3
Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm. - Image 4

Uninsulated Pin Connector. 10mm: 4.8mm 23.5mm X 4.3mm.

£40.02 Incl. VAT

10mm² Copper uninsulated pin connector 14.5mm pin length · · · Annealed to guarantee optimum ductility · · Brazed Seam · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper wire with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Finish: Tin Plated · · Fully Insulated: no · · CE: yes

200 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A2-P12 Categories: , , Brand: Part Number: 2500117713

Description

Technical Specifications  Technical Specifications Solderless copper terminals for copper conductors Sleeve form Short Flange shape Pin shape Insulation None Suitable for high temperatures (to 650 °C) No Suitable for fine strand conductors Yes Nominal cross section 10 – 10 mm² AWG-range 8 – 8 Max. current (Imax) – A Surface protection Tinned Bolt dimension (metric) – Material Copper Suitable for insulated varnish No Suitable for round conductors Yes Suitable for solid cores Yes Suitable for flat conductors No For pull protected connections No According to DIN No Useful for stranded conductors Yes Reel packaging No · Technical Data Sheet – Click to Download
