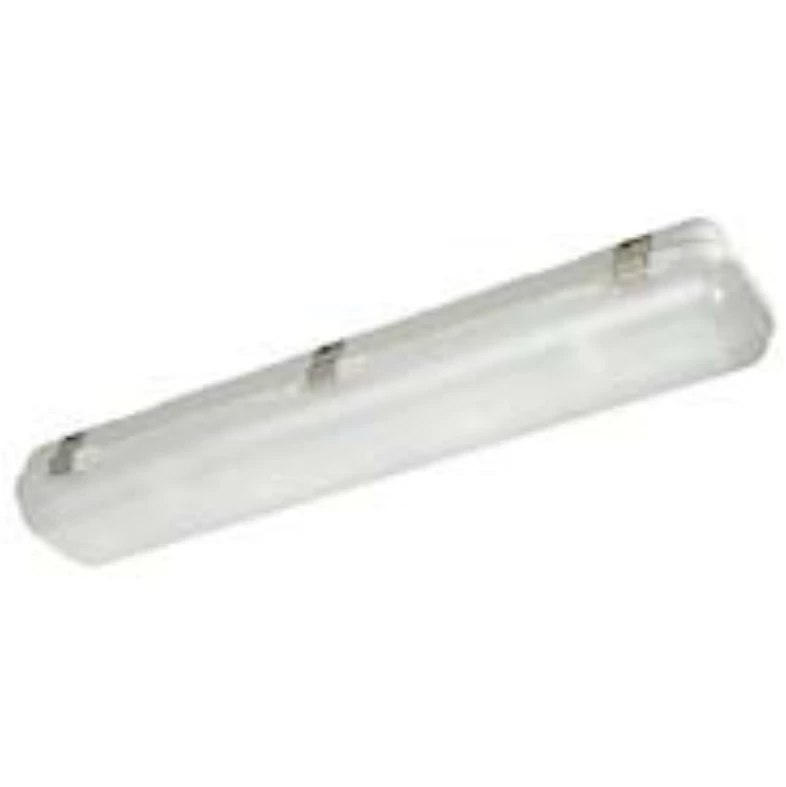

VULCAN 1x12W LED corrosion proof, IP65, 2ft, Grey, 5000K c/

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Outer diameter – mm Width 93 mm Rated life time L70/B50 at 25 °C 50000 h Luminaire efficacy 126 lm/W Total harmonic distortion 15.8 Length 660 mm Unified Glare Rating (UGR) 23.5 Number of poles – Recess diameter – mm Power factor 0.9 Recess length – mm Recess height/depth – mm Maximum system power 12.8 W Rated luminous flux acc. IEC 62722-2-1 – lm Recess width – mm Nominal current 50 – 50 mA Nominal voltage 220 – 240 V Colour temperature 5000 – 5000 K Lamp power – – – W Height/depth 97 mm Conductor cross section – mm² Number of lamps – Rated ambient temperature acc. IEC62722-2-1 -25 – 40 °C Light source included Yes Suitable for wall mounting Yes Suitable for ceiling mounting No Control gear included Yes Suitable for emergency lighting No With air slots No Suitable for recessed mounting No Fit for workplace acc. EN 12464-1 No Suitable for light line configuration No Dimming 1-10 V No Dimming with push-button No Dimming manufacturer’s proprietary system No Dimming sine wave reduction No Luminaire may be covered with thermally insulating material No Suitable for surface mounting No With light sensor No Suitable for suspended mounting Yes With movement sensor No Dimming leading edge No Dimming 0-10 V No Dimming DSI No Dimming DMX No Dimming RF No Dimming potentiometer (integrated) No Dimming programmable No Dimming touch and dim No Dimming LineSwitch No Dimming Zigbee No Dimming depending on control gear No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Dimming mains voltage modulation No Dimming DALI No No dimming function Yes Bluetooth operated No Dimming trailing edge No · Technical Data Sheet – Click to Download
