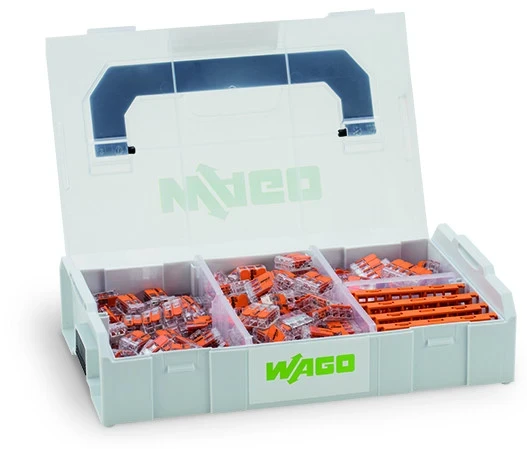

Wago Splicing Connector Set L-BOXX Mini 221 Series

Lever on, ladder in, lever close – done. The 221 series connection terminals make electrical installation of conductor cross-sections from 0.14 to 6 mm of single, fine and multi-wire conductors easy, fast and safe.The WAGO 221 series connector clamps are perfect for wiring work in building installations. Whether in installation sockets, three-phase sockets, for installing air conditioners – anywhere where single, fine or multi-wire conductors meet each other, you can connect faster, space-saving and safer with the 221 connection clamp.With the 2, 3 and 5 conductor terminals, you can quickly and easily connect all conductor types with different cross sections. Fine-stranded conductors can be connected with a connection range of 0.14 to 4 mm, single and multi-strand conductors from 0.2 to 4 mm. The 6 mm version connects all conductor types with conductor cross-sections from 0.5 to 6 mm.With the clamps of the series 221, check now from two different sides – even when installed. The 221 series clamps have two test openings: One made of conductor connection direction and one on the opposite side. The test openings ensure comfortable testing conditions even when installed in a wide range of installation environments. In addition, their designs ensure good contact with all standard test probes.The connection clamps can be opened very easily and quickly. The levers of the 221 series can be opened with reduced effort, which allows you to quickly connect the ladder – completely without any tools. The side recessed grips also prevent slipping and ensure easy holding of the clamp while connecting the ladder. · · · In compact l-boxx mini from sortimo · · Comfortable conductor connection from 0.14 to 4 mm · · Installation of single, fine and multi-strand conductors · · Compact connection terminals and mounting adapters
