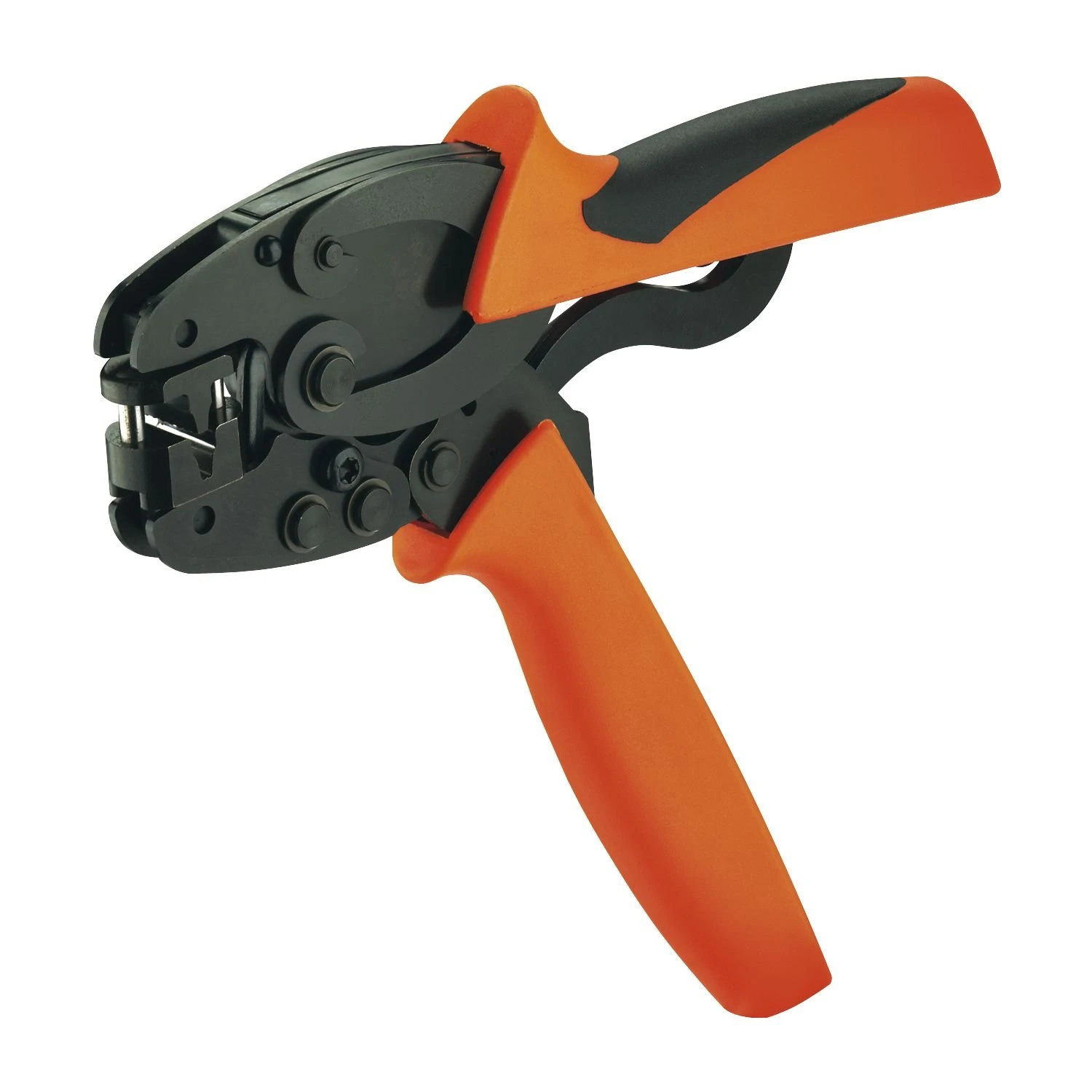

Weidmuller PZ 6 Crimping tool for wire-end ferrules, 0.14mm – 6mm
£231.35 Incl. VAT
Weidmuller 9014350000 crimping tool for wire end ferrules with/without plastic collars, 0.14 to 6mm² range. The PZ 6 Roto crimping forms a secure connection between conductor and contact and has largely replaced soldering. Crimping denotes the creation of a homogeneous, permanent connection between conductor and connecting element. The connection can be made only with high-quality precision tools. The result is a secure and reliable connection both in mechanical and electrical terms. · · · Length: 200mm · · Weight: 428g · · Crimp Type: Trapezoidal Crimp · · Crimping Range: 0.14-6mm²
Out of Stock
Description
Technical Specifications Technical Specifications Crimping tool for cable terminations and connections Suitable for Cable end sleeves Construction/operation Mechanical Compression shape Trapezoid compression Number of included inserts 1 Cross section 0.14 – 6 mm² With automatic return Yes Length 200 mm Inserts exchangeable Yes With locking device (for mechanical tools) Yes · Technical Data Sheet – Click to Download
