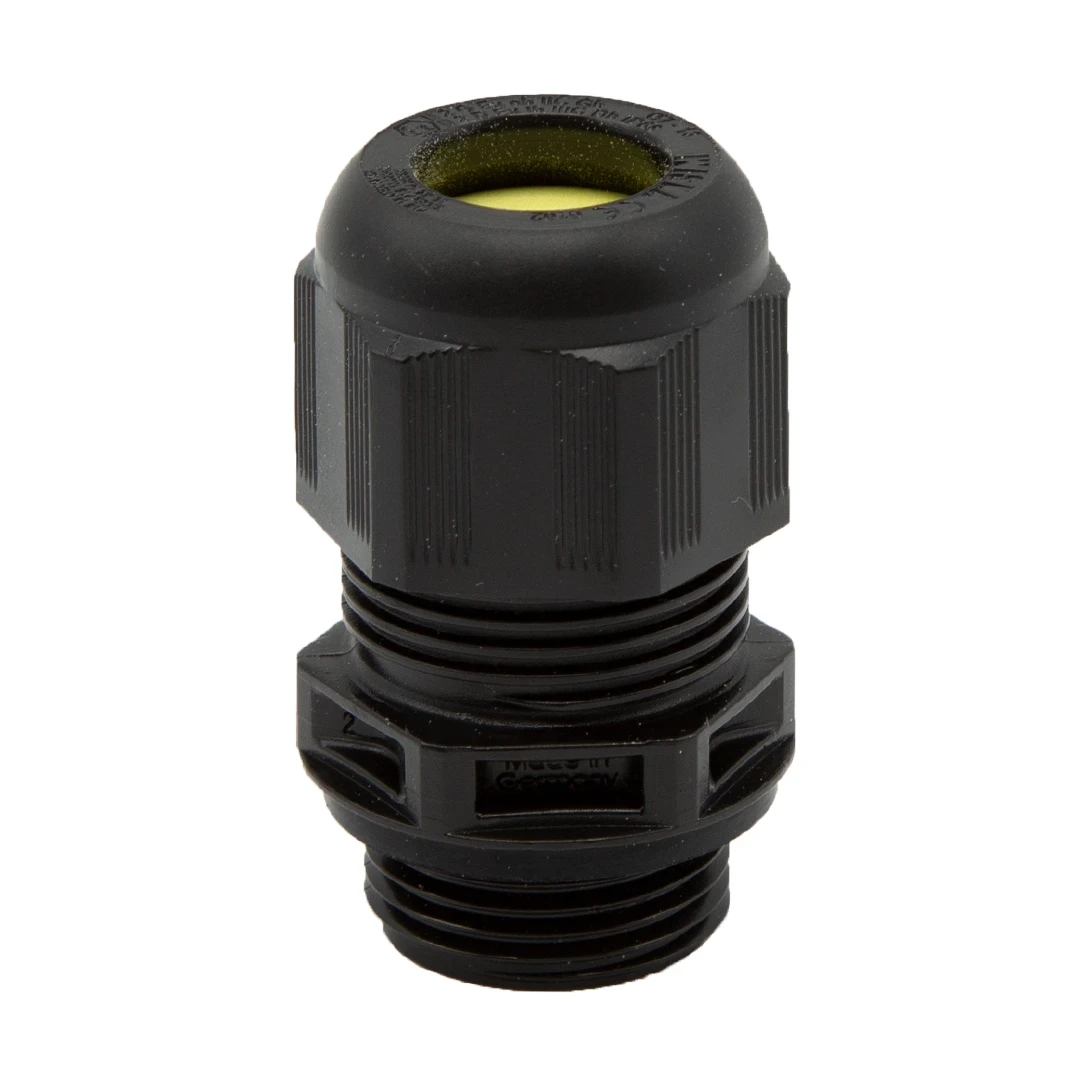

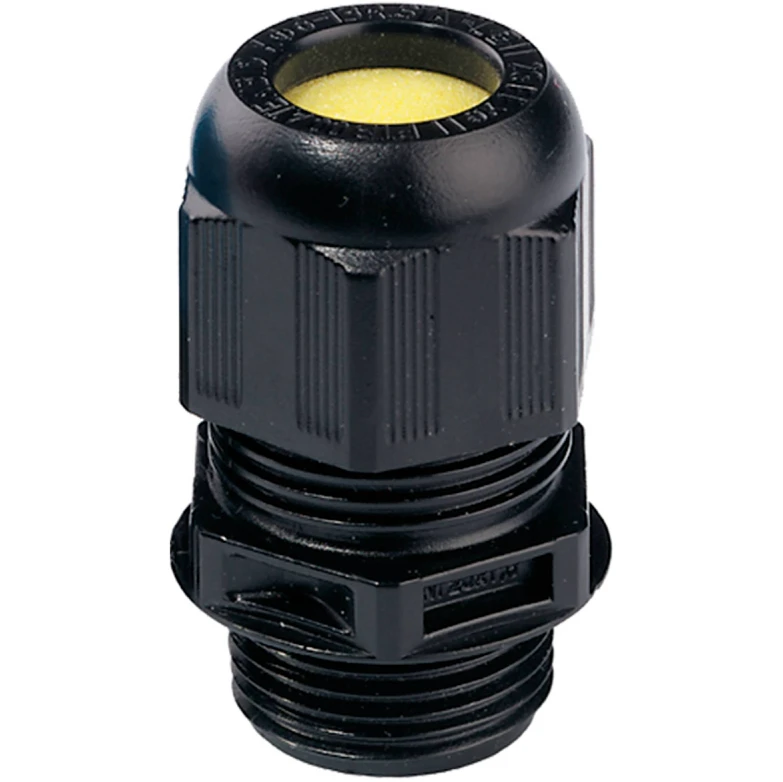

Wiska Cable Gland Eske/1-E 20 Increased Safety Atex M20 Black Polyami

SKU: 10103365Go Magpie ID: 5060062344088

Wiska UK 10103365 SPRINT Cable Gland ESKE/1-e 20 Increased Safety ATEX M20 Black Polyamide IP66 IP68 (5 bar 30 min) · · · Product: Gland · · Type: Flameproof · · Pack Quantity: 50 · · Ingress Protection: IP68 · · Gland Material: Polyamide · · Gland Colour: Black · · Gland Size: M20 mm · · Standards: EN 60695-2-11

£1.87inc VAT£1.56 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

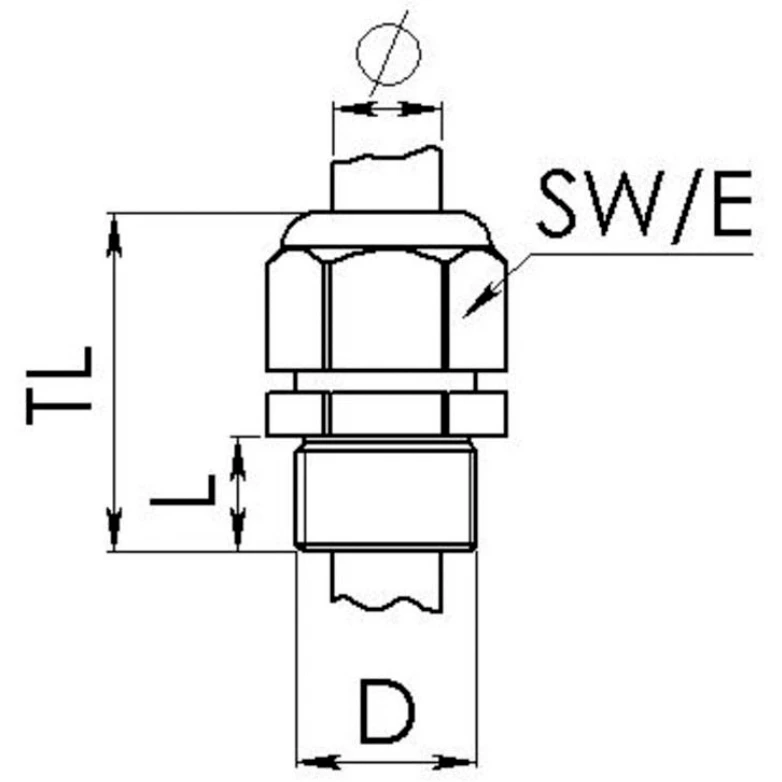

Technical Specifications  Technical Specifications Cable gland Material qualifier Polyamide (PA) Surface protection Untreated Model Straight Thread type Metric For ATEX classification, Ex-zone gas 1, 2 Colour Black Degree of protection (IP rating) IP68 Material Plastic For ATEX classification, Ex-zone dust 21, 22 RAL number 9005 Thread length 10 mm Pitch thread 1.5 mm Nominal thread size metric/PG 20 Spanner width 24 mm Working temperature -40 °C Suitable for cable outer diameter 7 – 7 mm With strain relief Yes Bend radius protection/trumpet flare No Separable (split) screw gland No Flat cable sealing No Multi cable sealing No Locknut included No Halogen free Yes Glass fibre reinforced No EMC-version No Explosion-tested version Yes Shock resistant Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
