Description

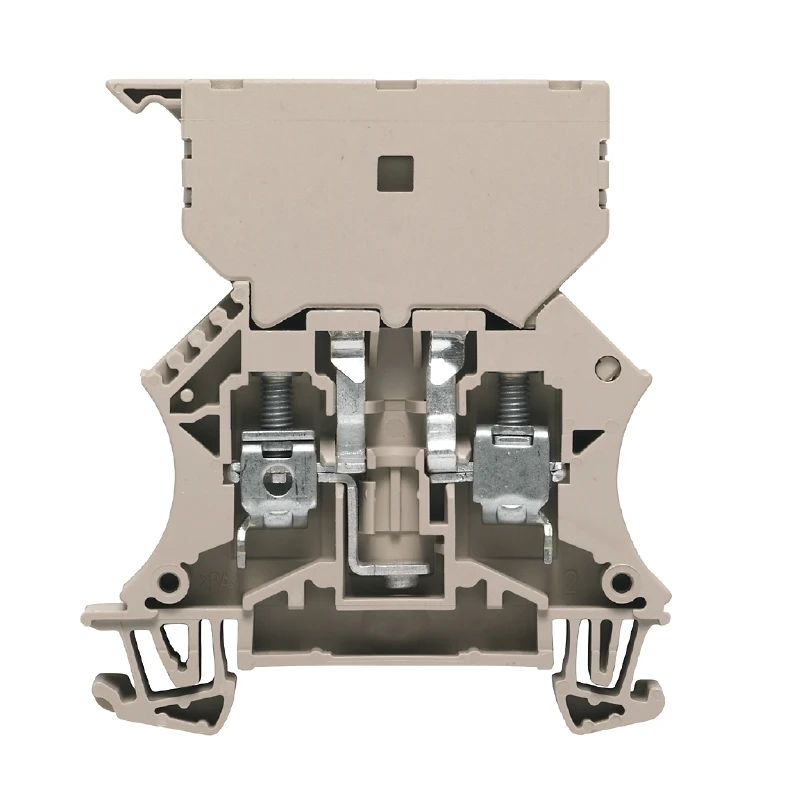

Technical Specifications  Technical Specifications Fused terminal block Type of indication element for defect indication None Inflammability class of insulation material acc. with UL94 V0 Type of fuse holder Screw fix Mounting method DIN rail (top hat rail) 35 mm Connection position Sideways Material insulation body Urea formaldehyde Colour Beige Type of electrical connection 2 Screw connection Type of electrical connection 1 Screw connection Width/grid dimension 11.9 mm Operating temperature -50 – 120 °C Length 66.5 mm Number of levels 1 Height at lowest possible mounting height 67 mm Rated current In 6.3 A Rated voltage 250 V Voltage type for defect indication AC Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 10 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 6 mm² Supply voltage for defect-indication 150 – 230 V Connectable conductor cross section solid-core 0.5 – 10 mm² Connectable conductor cross section multi-wired 1.5 – 10 mm² Closing plate required Yes · Technical Data Sheet – Click to Download
