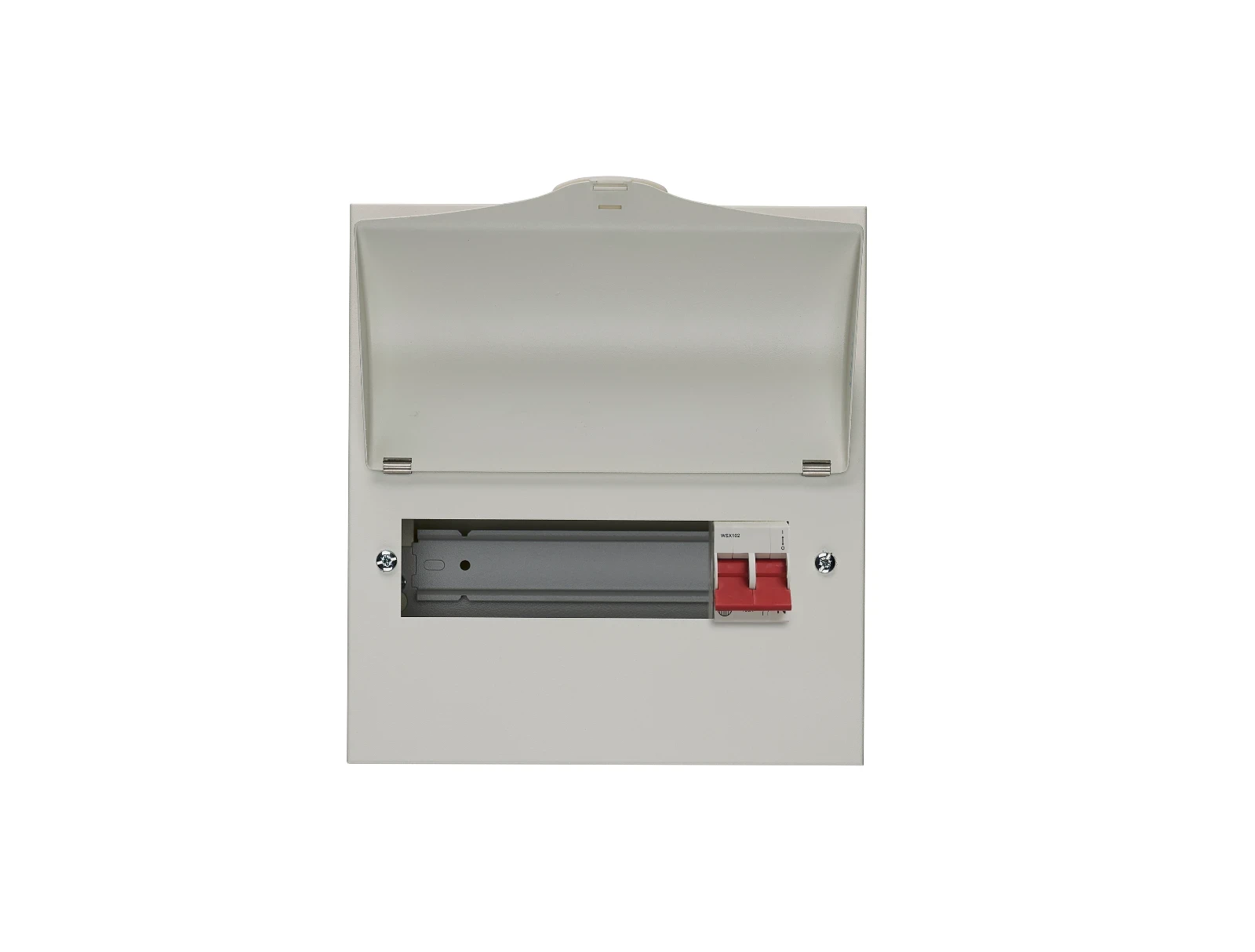

Wylex 8 Way Consumer Unit Flex Main Switch 100A Metal Cased Combination B
Wylex 8 Way Consumer Unit Flex Main Switch 100A Metal Cased Combination B
Wylex 8 Way Consumer Unit Flex Main Switch 100A Metal Cased Combination B - Image 2
Wylex 8 Way Consumer Unit Flex Main Switch 100A Metal Cased Combination B - Image 3

Wylex 8 Way Consumer Unit Flex Main Switch 100A Metal Cased Combination B

£65.89 Incl. VAT

Flexible main switch The Wylex NM806FLEX is an 8 way, 100A flexible main switch consumer unit. The consumer unit has a compact, all metal enclosure, with no external plastic parts. The Wylex NM806FLEX allows for the total isolation of circuits and is a great choice when it comes to achieving a 17th edition Amendment 3 installation and avoiding nuisance tripping. · · · Current rating 100A · · No. of ways 8 · · Accepts all Wylex miniature final circuit protection devices; MCBs, RCBOs and AFDDs · · Accepts the Wylex miniature type 2 SPD, NMT2SPD3W/1 · · Metal enclosure includes a full DIN rail with curved visor and temporary locking facility

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NM806FLEX Categories: , , Brand: Part Number: 2500694974

Description

Technical Specifications  Technical Specifications Small distribution board equipped Depth 121 mm Width 242 mm Height 261 mm Width in number of modular spacings 10 Number of poles main switch 2 Total number of groups 1 Main switch rated current 100 A Number of phases 1 With transparent cover No Lockable Yes Extension possible No Over voltage-/surge protection No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
