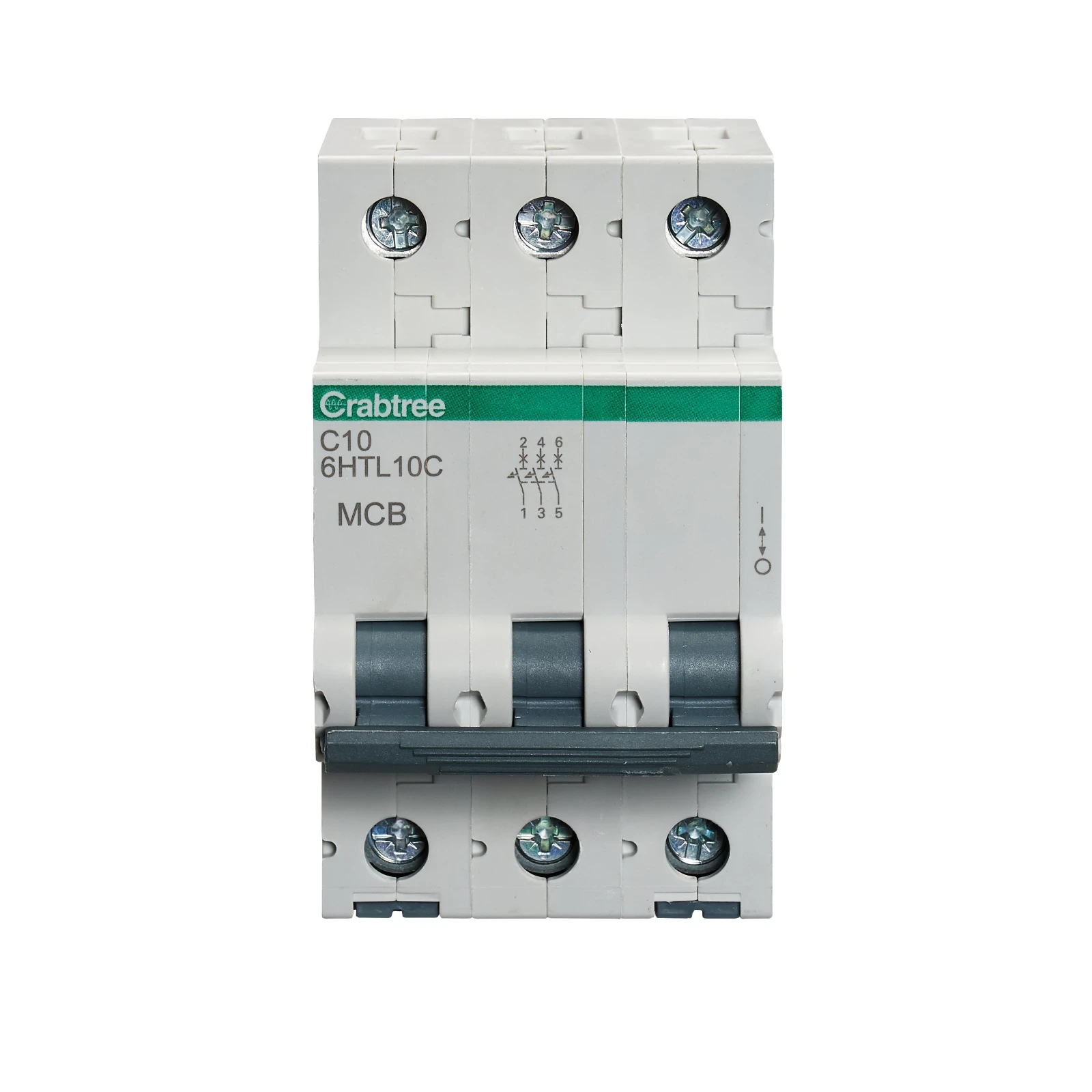

Crabtree 10A TP MCB Type C 10kA

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 10 A Current limiting class 3 Rated voltage 230 V Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Number of protected poles 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Width in number of modular spacings 3 Over voltage category 3 Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Concurrently switching N-neutral No Additional equipment possible No Flush-mounted installation No · Technical Data Sheet – Click to Download
