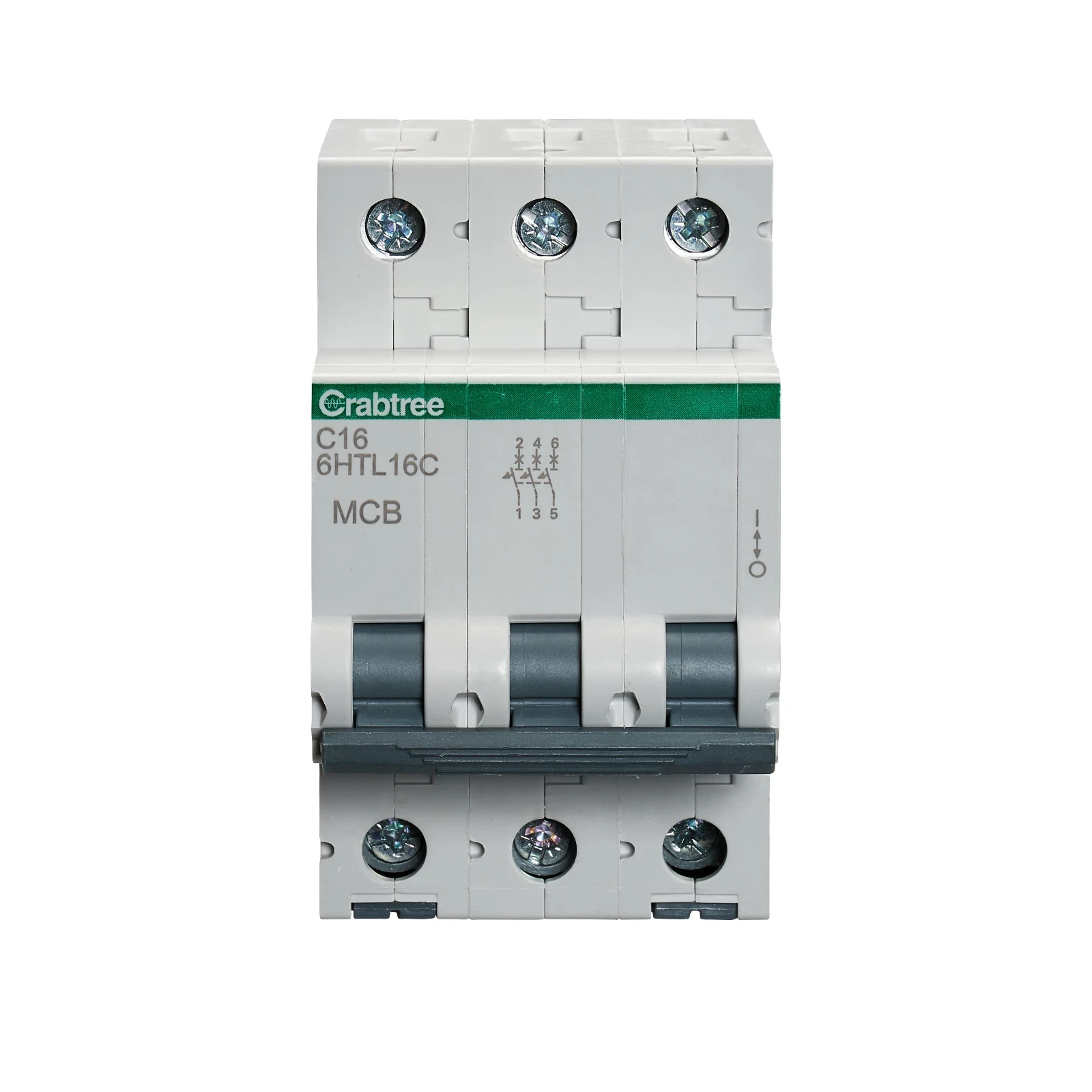

Crabtree 16A TP MCB Type C 10kA
Brand: CrabtreeProduct code: 6HTL16CGo Magpie Ref: 5060062315904
· · C curve trip characteristic (5-10In) · · Triple pole MCB · · 10kA to BS EN 60898-1 (15kA to BS EN 60947-2) @ 240V AC · · Energy limiting Class 3
£45.02inc VAT£37.52 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated impulse-withstand voltage (Uimp) 4 kV Rated current 16 A Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Number of poles (total) 3 Rated insulation voltage Ui 400 V Current limiting class 3 Number of protected poles 3 Rated voltage 230 V Over voltage category 3 Width in number of modular spacings 3 Frequency 50 – 50 Hz Ambient temperature during operating -5 – 40 °C Connectable conductor cross section multi-wired 0.75 – 25 mm² Concurrently switching N-neutral No Flush-mounted installation No Additional equipment possible No · Technical Data Sheet – Click to Download
