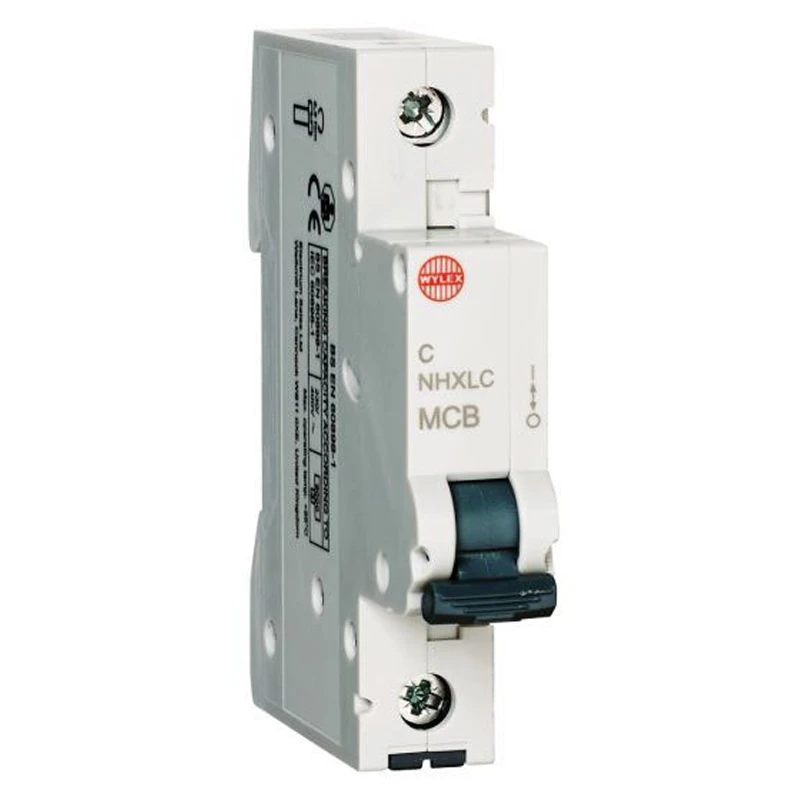

Product image supplied by the manufacturer
Circuit Breakers & Devices

Wylex 6A SP Type C 6kA MCB

Brand: WylexProduct code: NHXLC06Go Magpie Ref: 5060062360618

Wylex NHXL Miniature Circuit Breaker is compatible with Wylex NMX seamless all metal enclosures and Wylex NM all metal enclosures which are compliant with the new 18th Edition wiring regulations. The Wylex NHXLB Miniature Circuit Breakers detect overcurrent’s due to both overload and fault currents. · · · Single pole MCB, 6A C curve · · Energy limiting Class 3 · · Quick release DIN clip · · No miss busbar connection · · Fits NM & NMX consumer units

£5.33inc VAT£4.44 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 6 A Tripping characteristic (type/curve) C Recess depth 73 mm Rated voltage 230 V Rated short-circuit breaking capacity Icn EN 60898 at 400 V 6 kA Width in number of modular spacings 1 Rated insulation voltage Ui 400 V Rated impulse-withstand voltage (Uimp) 4 kV Number of protected poles 1 Over voltage category 3 Current limiting class 3 Number of poles (total) 1 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Frequency 50 – 50 Hz Connectable conductor cross section multi-wired 0.75 – 25 mm² Ambient temperature during operating -5 – 40 °C Additional equipment possible No Concurrently switching N-neutral No Flush-mounted installation No · Technical Data Sheet – Click to Download
