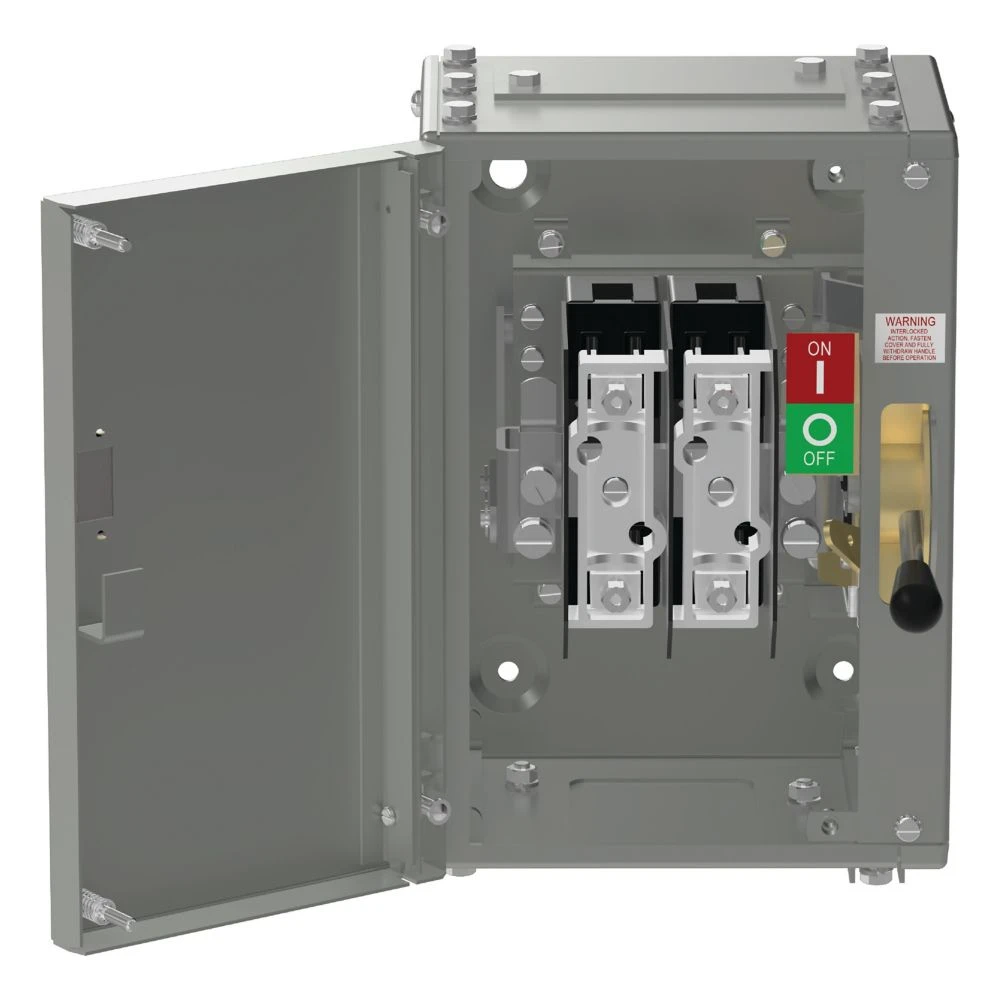

Eaton 63A SPSN Glasgow Switch-Disconnector Surface-Mounted Ral 7004

The Eaton 61GN is a 63A SP+N Fuse Switch Disconnector. It is a surface-mounted device made from heavy gauge steel, making it durable. It is fitted with a 63A HRC Fuselink but it does accept fuselinks of a lower rating. The 61GN is a modular device, meaning that the enclosure and fuselink or switchlink are ordered separately. This allows for installation flexibility by pairing the required fuselink or switchlink with the necessary enclosure.The 61GN meets the constructional requirements for isolation of and are type tested to BS EN 60947-3. Conditional short circuit current rating tests at a value of 80kA rms Ue 415V have been carried out with Eaton HRC fuses fitted.The 61GN meets the constructional requirements for isolation of and are type tested to BS EN 60947-3. Conditional short circuit current rating tests at a value of 80kA rms Ue 415V have been carried out with Eaton HRC fuses fitted. · · · 63A SP+N rating · · HRC Fuselink included · · Modular design · · Meets BS EN 60947-3
