CGD MCB 10A Single Pole B Curve 6kA (G06-1B10)
CGD MCB 10A Single Pole B Curve 6kA (G06-1B10)

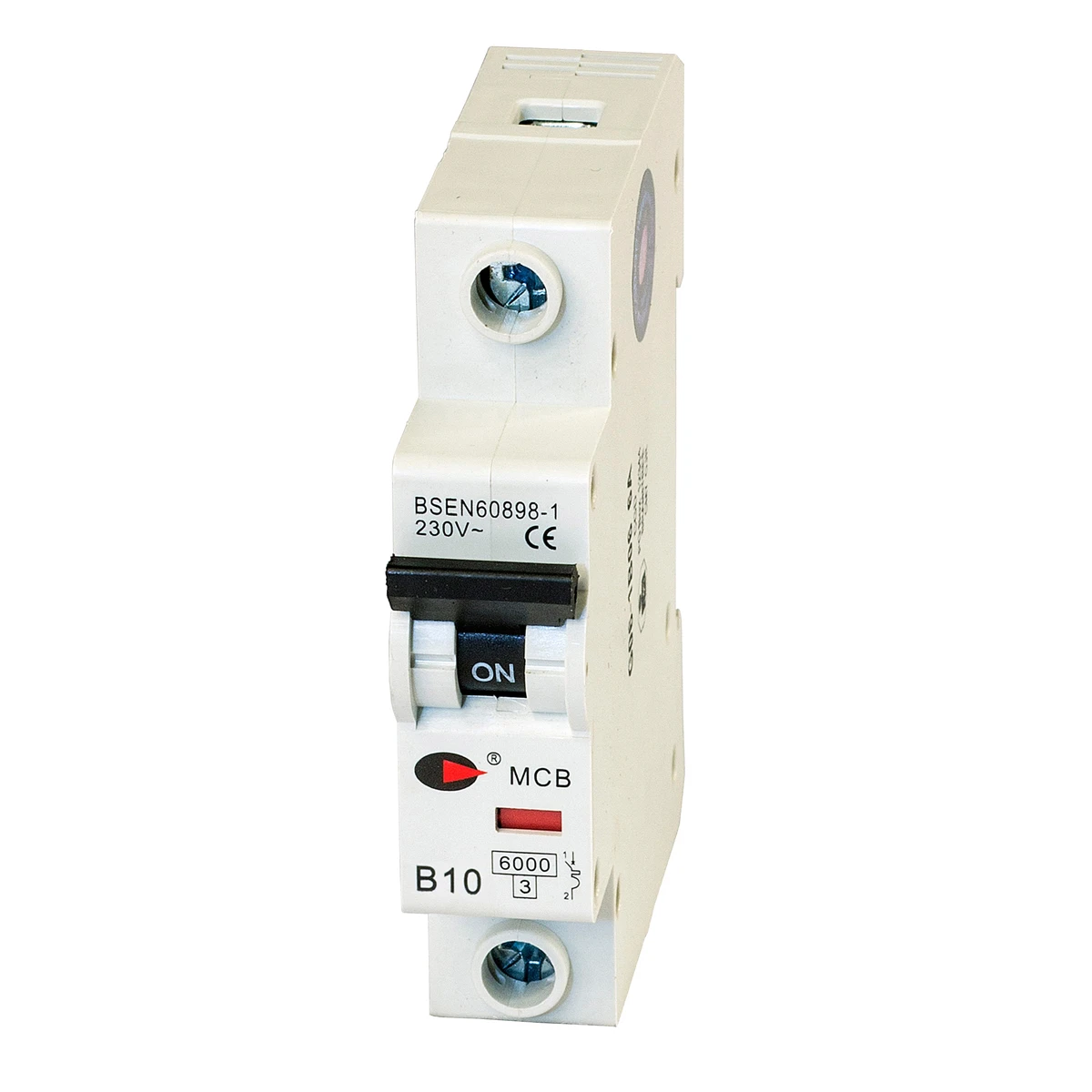

CGD MCB 10A Single Pole B Curve 6kA (G06-1B10) - Image 2

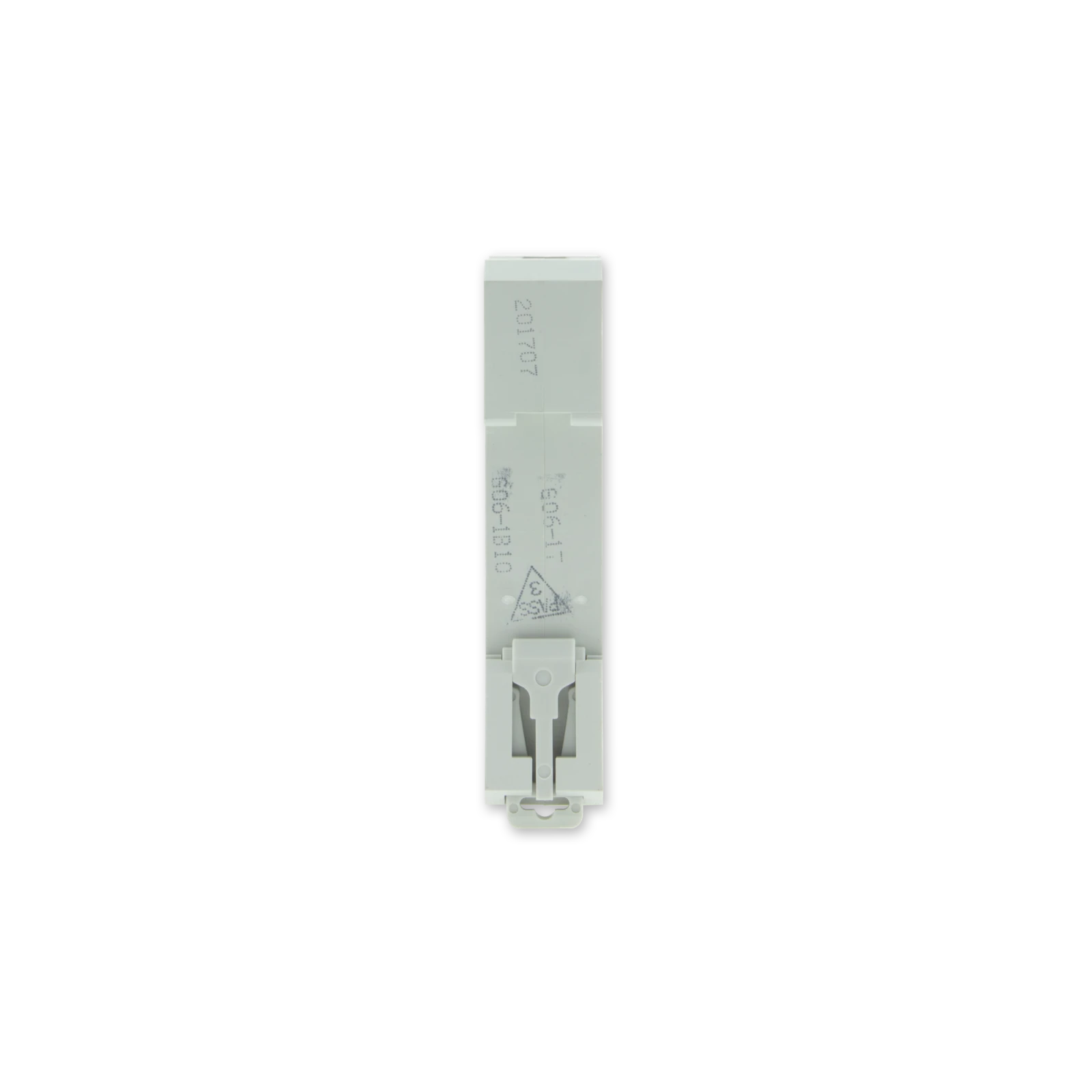

CGD MCB 10A Single Pole B Curve 6kA (G06-1B10) - Image 3

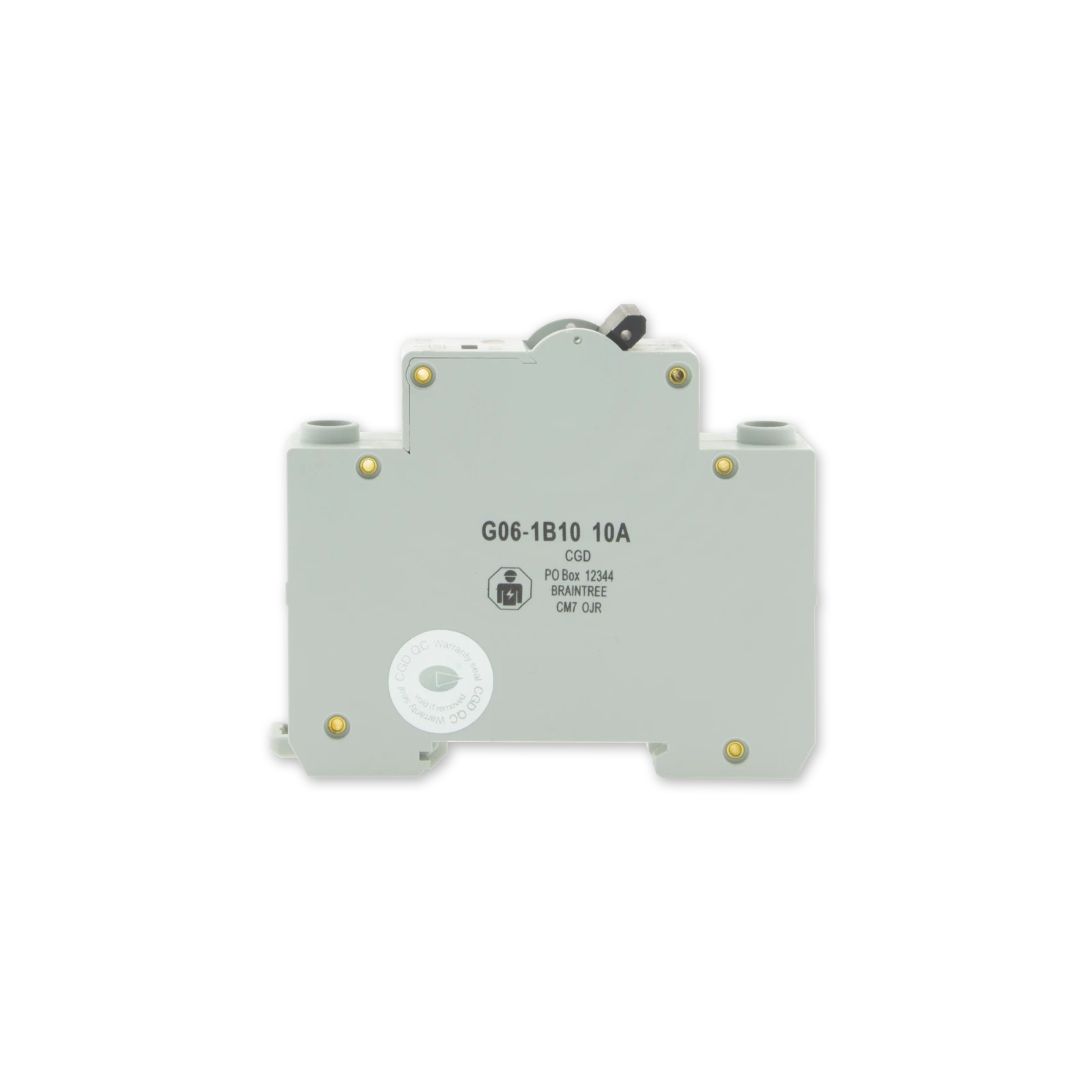

CGD MCB 10A Single Pole B Curve 6kA (G06-1B10) - Image 4

CGD MCB 10A Single Pole B Curve 6kA (G06-1B10)

£3.01 Incl. VAT

Designed to be used in our Steeple and Designa Curve consumer units, they are din rail mounted, designed to take a cable size from 1mm to 16mm and have a toggle with on/off indicator to switch the device on and off. This MCB provides protection against overloads, short circuits and infrequent switching of circuits under normal conditions. · · · Current Rating: 10A · · Rated short circuit capacity: 6kA · · Tripping Characteristic: B · · Terminal Tightening Torque: 2.5Nm · · Reference Standard: IEC / BS EN60898-1 · · Rated Voltage (Ue): 230-240V ac · · No. of modules: 1 x 18mm module · · Rated Frequency (Fn): 50/60Hz · · Operating temperature: -5 to +40 C · · Guarantee: 1 Year

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WG06-1B10 Categories: , , Brand: Part Number: 2500970540

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Voltage type AC Tripping characteristic (type/curve) B Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 6 kA Rated current 10 A Rated voltage 230 V Number of poles (total) 1 Frequency 50 – 60 Hz · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
