Di-Log EVSE Charge Station Adaptor Kit

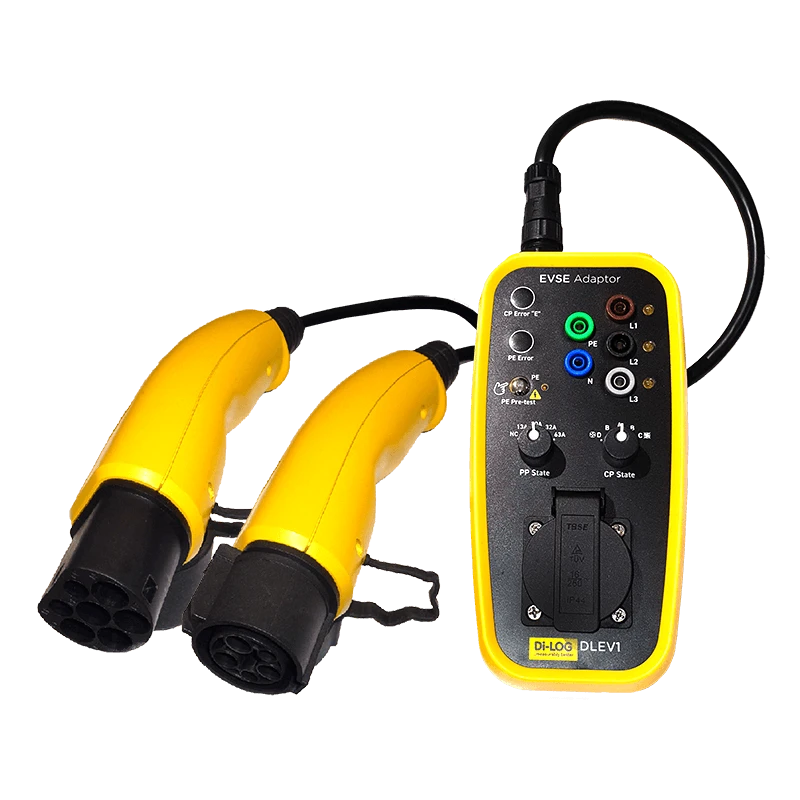

The DLEV1 is a universal EVSE charge station adaptor kit that will simulate the proximity pilot (pp) states and control pilot (cp) states required to energise a free-standing or wall-mounted EV charger. Supplied with a Type 1 and Type 2 connector plug specifically designed for testing, the DLEV1 kit will also simulate PE pre-test, CP error “E” and PE error with the added feature of CP signal output and load connection. The dlev1 has a 13a socket for mft mains lead or can be used for inline load connection. In addition to this, there are also 4mm input terminals for single or 3-phase connections. · · · Universal to all multifunctional installation testers · · Proximity Pilot (PP) State (NC, 13A, 20A, 32A & 63A) · · Control Pilot (CP) State (A,B,C & D) · · PE Pre-test · · CP Error “E” · · PE Error · · 13A Input for Loading or MFT connection · · 4mm Input for Single & 3-Phase Chargers · · 13A Plug for MFT or Load Connection · · Supplied with Type 1 and Type 2 EV Plug
