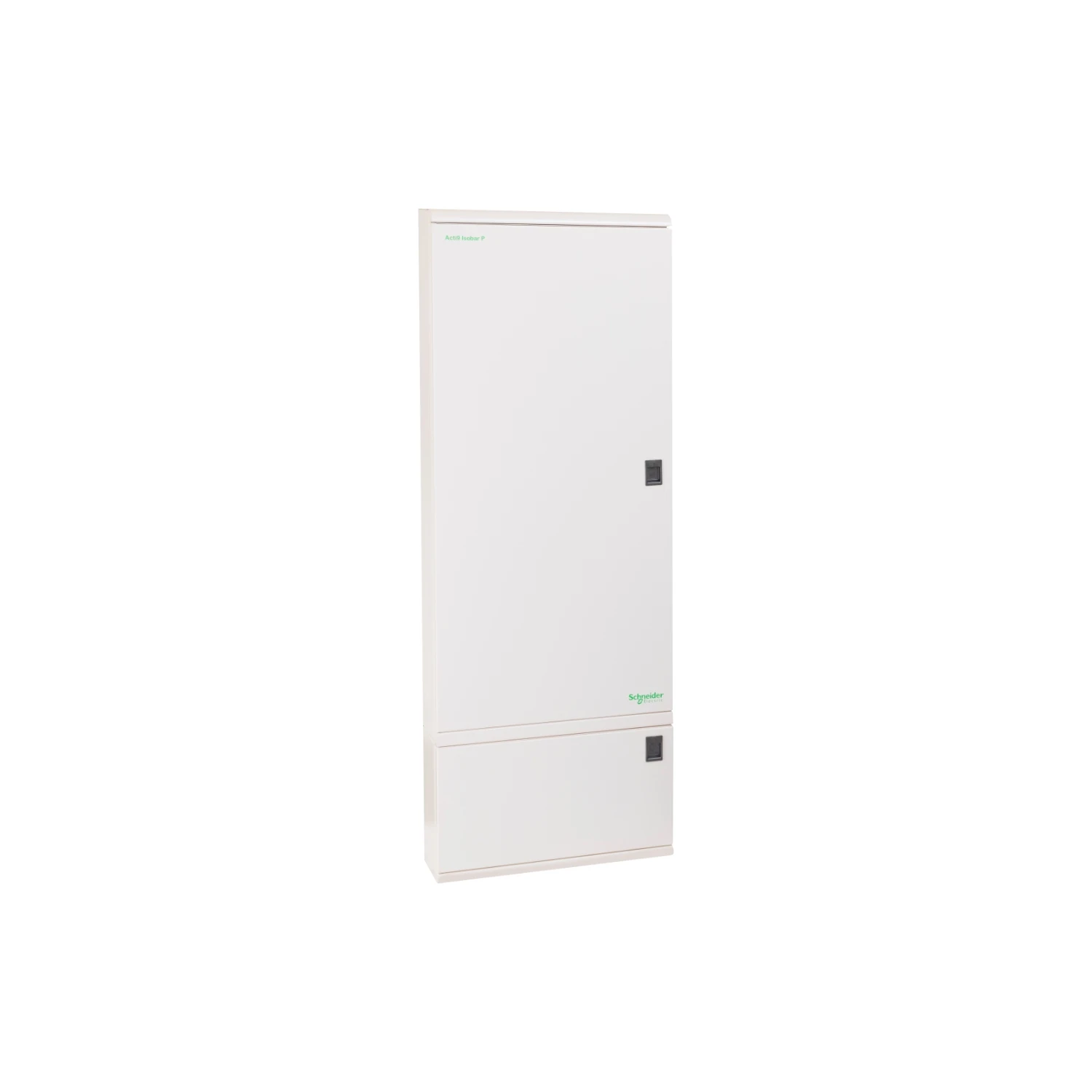

Distribution Board Acti9 16+6Way Isobar Split 125A Metered Db
Distribution Board Acti9 16+6Way Isobar Split 125A Metered Db
Distribution Board Acti9 16+6Way Isobar Split 125A Metered Db - Image 2
Distribution Board Acti9 16+6Way Isobar Split 125A Metered Db - Image 3

Distribution Board Acti9 16+6Way Isobar Split 125A Metered Db

£4,888.09 Incl. VAT

This Acti9 Isobar B P product is a split metered distribution board, up to 125A. (e.g. circuit breakers, Arc fault detection devices, and residual current devices) – associated with one or more outgoing circuits fed from incoming circuits, together with terminals for the neutral and circuit protective conductors.- It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 1290mm x (D) 139mm. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9BPN12516S6 Categories: , , Brand: Part Number: 2501109064

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Height 1290 mm Depth 139 mm RAL number 9001 Width in number of modular spacings 16 With mounting plate No Number of rows 2 Transparent cover/door No Extension possible Yes EMC-version No With lock Yes With DIN-rail Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
