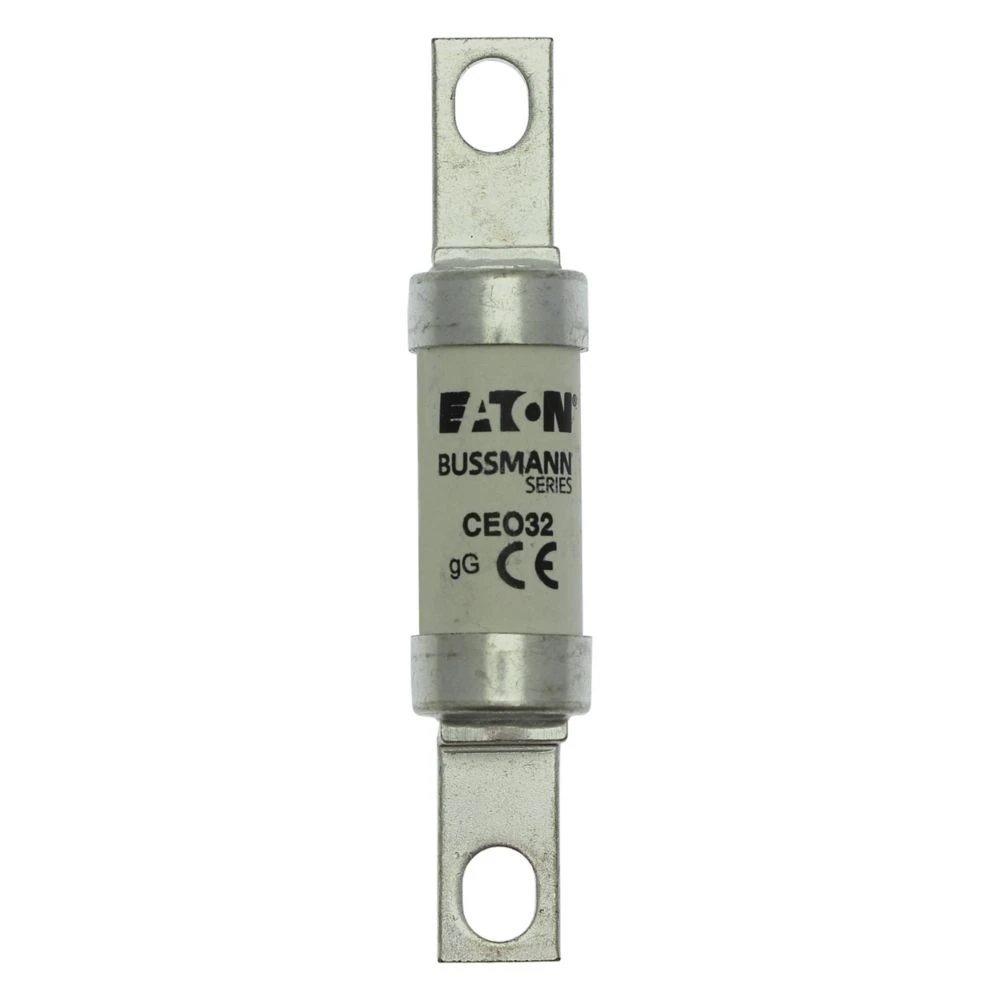

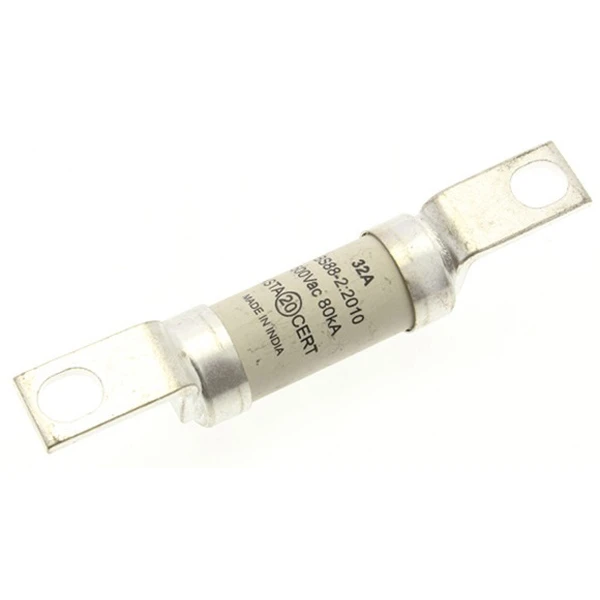

Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS
Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS
Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 2
Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 3
Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS - Image 4

Fuse-link LV 32 A AC 500 V BS88/A4 25 x 110 mm gL/gG BS

£10.58 Incl. VAT

Fuse, Fuse-link, low voltage, 32 A, AC 500 V, BS88/A4, 25 x 110 mm, gL/gG, BS, offset bolted tags, general industrial applications, BS88-2, IEC 60269-2, Breaking Capacity 80 kA, Optional accessories fuse-holder RS100H · · · 1: 1: 6 selective coordination ratio between “minor” and “major” fuse · · gG/gM characteristics for cable protection · · Power loss values within the limits of IEC 60269 · · Compatible with Red Spot fuse holder 100A RS100 · · Pre-arching: 1 · · Total at 415V: 2,760 · · Watts loss: 3.5 · · 500VAC rated voltage · · 94mm fixing centre

3 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CEO32 Categories: , , Brand: Part Number: 2500013171

Description

Technical Specifications  Technical Specifications HRC fuse Colour code None Type of fuse status indicator None Fuse system according to IEC 60269 Fuse system E Utilization category gG (cable protection/equipment protection) Mounting holes M8 Fuse construction type according to IEC 60269 A4 Current type AC Rated current 32 A Centre-to-centre distance of connections 94 mm Rated voltage AC 500 V Breaking capacity 80 kA Power loss at rated current 3.5 W · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
