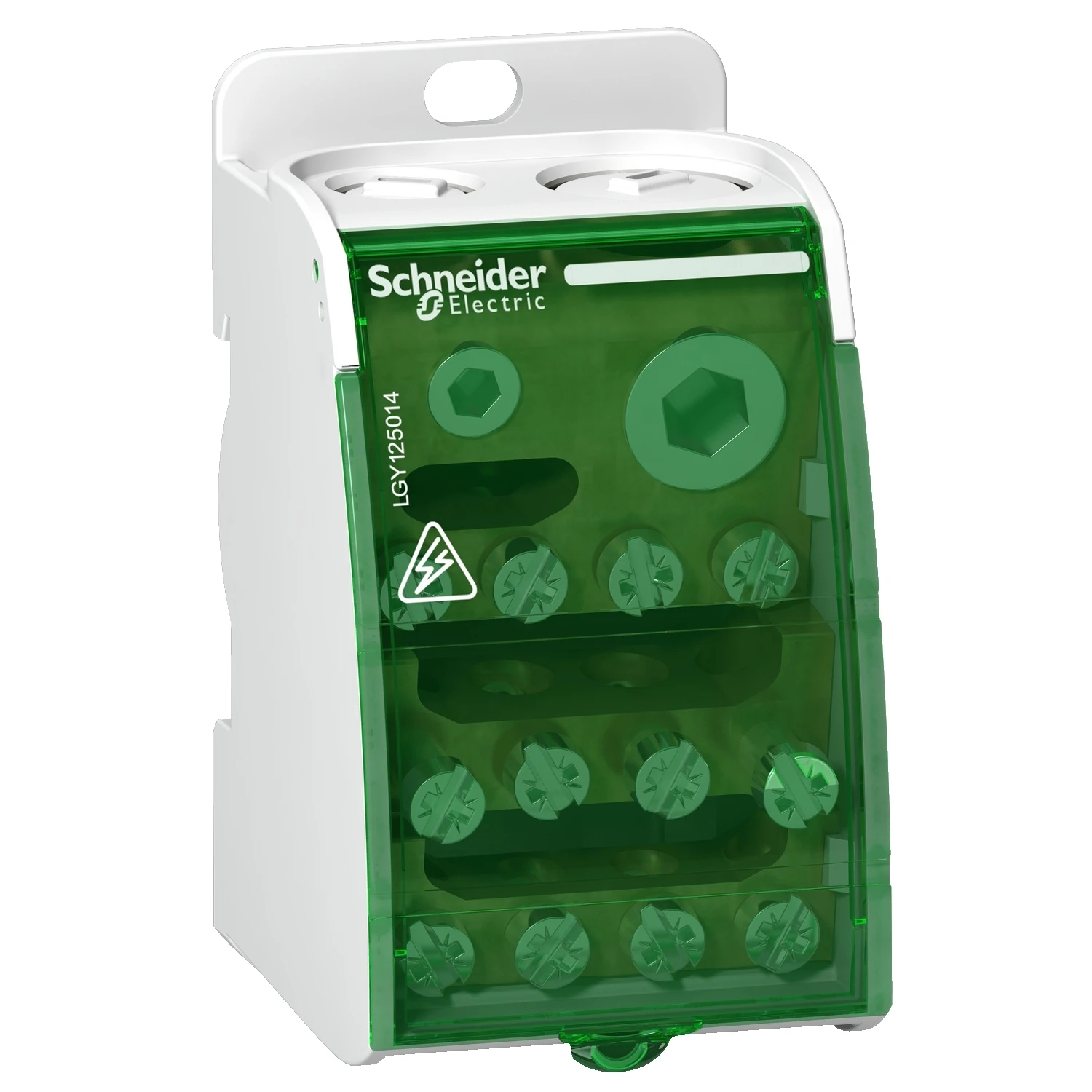

Linergy DS, Screw Distribution Block 1P 250A 14 Holes

Schneider Electric Comm Circ Prot LGY125014 Distribution Block Screw SP 14 Holes 250A · · · This Linergy DS screw distribution blocks can be installed on a standard Din rail or on a mounting plate. · · It is dedicated to 1P installations. The number of poles is 1. The total connection capacity is 14 holes. · · The Ie rated operational current is 250A. The Rated peak withstand current Ipk/60ms is 36kÂ. · · The Icw rated short-line withstand current according to IEC/EN 60947-7-1 is 8.4kA ms/1s. · · The width in 9mm pitches is 4. The terminal capacity is 2x12mm diameter, 3×7.5mm diameter, 8×5.8mm diameter.
