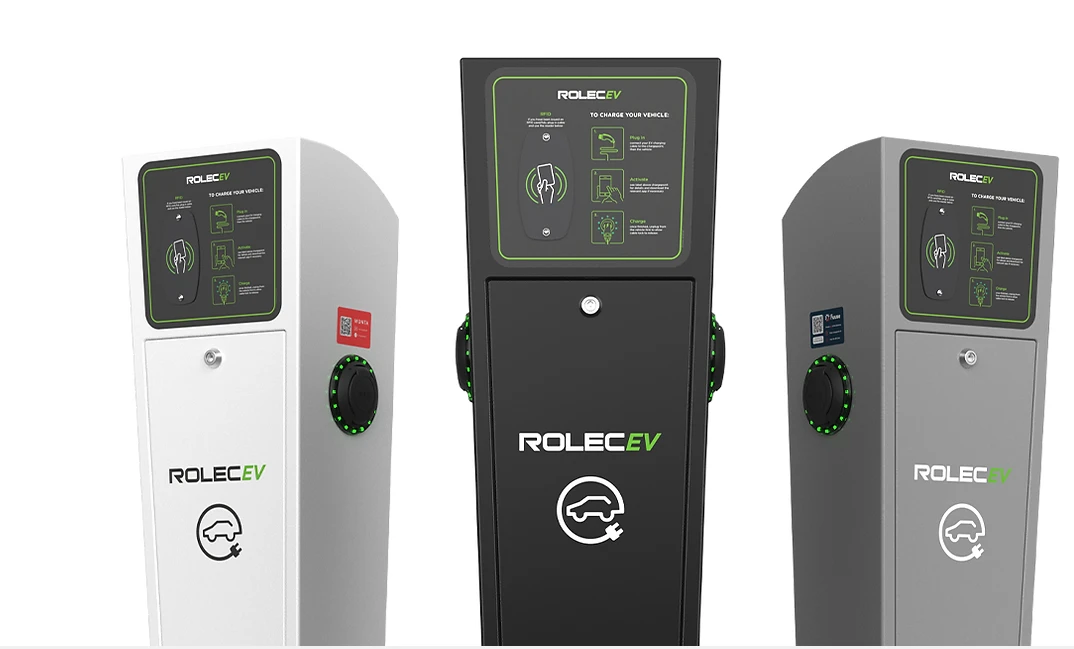

Rolec Autocharge EV Charging Pedestal 3 Phase Black 2 x Type 2 (IEC 62196) Charging Sockets Up To 22kW (32A) Per Socket 1 x 63A 400V AC
£2,962.82 Incl. VAT
The AUTOCHARGE is a robust and hard-wearing EV charging pedestal. Its heavy-duty and vandal-resistant features, make it the ideal solution for exposed locations such as workplaces and public car parks.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Supports dynamic load balancing & static load management · · OCPP 1.6 compliant (Can integrate with any back-office)
3 in stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Housing material Steel Mounting method Floor fastening Installation side connection model 3-phase Voltage type of supply voltage AC Open Charge Point Protocol (OCPP) version 1.6 Frequency 50/60 Hz Width 332 mm Max. power per charging point 22 kW Number of socket outlets Type 2 2 Max. output current DC 32 A Number of charging units 2 Height 1275 mm Depth 270 mm Suitable for wall mounting No Floor mounting Yes · Technical Data Sheet – Click to Download
