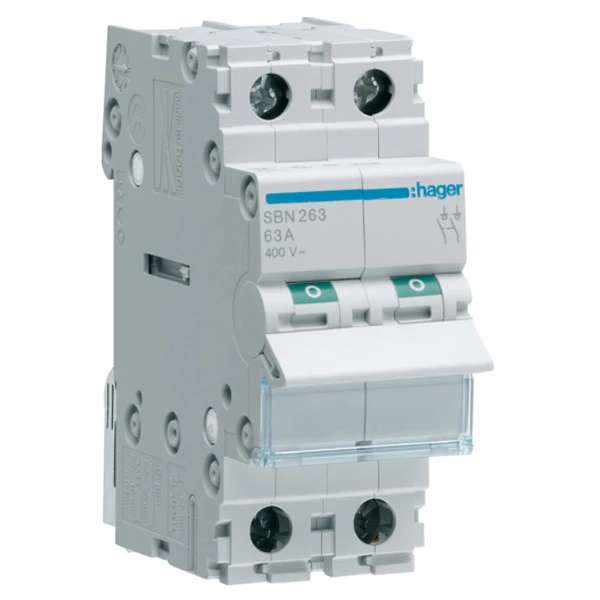

Switch Disconnector Double Pole 63A 250V
Switch Disconnector Double Pole 63A 250V
Switch Disconnector Double Pole 63A 250V - Image 2

Switch Disconnector Double Pole 63A 250V

£42.62 Incl. VAT

Hager Switch Disconnector for use as a switch disconnector in all types of circuits. · · · 63 Amp · · Double Pole · · Screw connection · · IP20 protection rating · · Green / Red indication on the toggle giving positive contact indication · · Utilisation category AC22A 230V / 400V · · Connection capacity: 16mm – rigid conductor, 10mm – flexible conductor

20 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SBN263 Categories: , , Brand: Part Number: 2500536953

Description

Technical Specifications  Technical Specifications Main switch for distribution board Degree of protection (IP rating) IP20 Colour light source Not applicable Switching function Off switch Number of poles 2 Recess depth 68 mm Rated current 63 A Rated voltage 400 V Lamp socket Not applicable Voltage type AC Light source type Not applicable Min. rated voltage 10 V Number of normally open contacts 2 Number of change-over contacts 0 Number of normally closed contacts 0 Width in number of modular spacings 2 Number of contacts as normally open contact 2 With indicator lamp No Forced segregation (according to DIN VDE 0113) No · Technical Data Sheet – Click to Download
