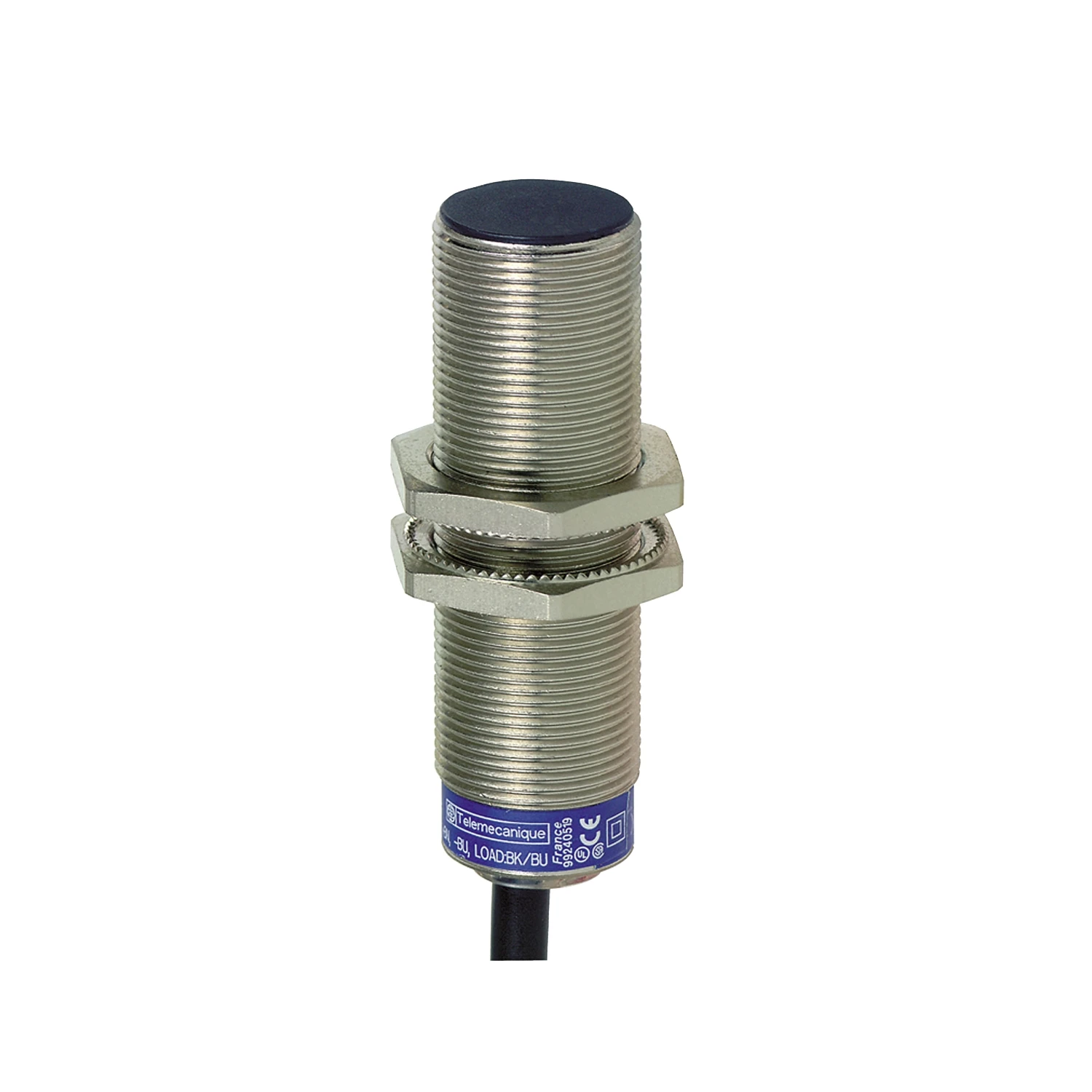

Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M
Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M
Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M - Image 2
Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M - Image 3
Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M - Image 4

Telemecanique Sensors Inductive Sensor Xs6m18 L62mm Brass Sn8mm 12-48Vdc Cable 2M

£52.55 Incl. VAT

This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has an annular LED for easy sensor status viewing, setup and troubleshooting. IP65, IP68 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It features double insulation for better people and system protection from electrical shocks. It is CSA, UL certified. · · · This XS cylindrical (M18 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. · · It has a supply voltage of 12V to 48V DC. · · This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. · · It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. · · It has an annular LED for easy sensor status viewing, setup and troubleshooting. · · IP65, IP68 and IP69K protection makes this product ready for the harshest environments. · · It can operate in very cold (-25°C) and hot environments (+70°C). · · It features double insulation for better people and system protection from electrical shocks. · · It is CSA, UL certified.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XS618B1PBL2 Categories: , , , , , Brand: Product Code: 2500213243

Description

Technical Specifications  Technical Specifications Inductive proximity switch Explosion safety category for dust None SIL according to IEC 61508 None Explosion safety category for gas None Performance level acc. to EN ISO 13849-1 None Type of interface for safety communication None Interface type None Construction type housing Cylinder, screw-thread Coating housing Nickel-plated Mechanical mounting condition for sensor Concise Type of switch function Breaker contact Housing material Metal Interference resistance to magnetic fields Immune against magnetic DC-field Type of switching output PNP/PNP Type of electric connection Cable radial Voltage type AC/DC Type of actuation Metallic Target Switching frequency 1000 Hz Width sensor – mm Number of semiconductor outputs with signalling function 1 Number of protected semiconductor outputs 1 Number of protected contact energized outputs 0 Number of contact energized outputs with signalling function 0 Height of sensor – mm Diameter sensor 18 mm Length of sensor 60 mm Max. output current at protected output 200 mA Switching distance 8 mm Rated control supply voltage at AC 50 Hz – V Rated control supply voltage at AC 60 Hz – V Supply voltage 12 – 48 V Rated control supply voltage at DC 12 – 48 V Suitable for safety functions No Cascadable No With monitoring function downstream switching devices No Compression-resistant No · Technical Data Sheet – Click to Download
