Terminal 26-14AWG Wemid 2g 3.5x24x24.5mm Dark Beige
£1.08 Incl. VAT

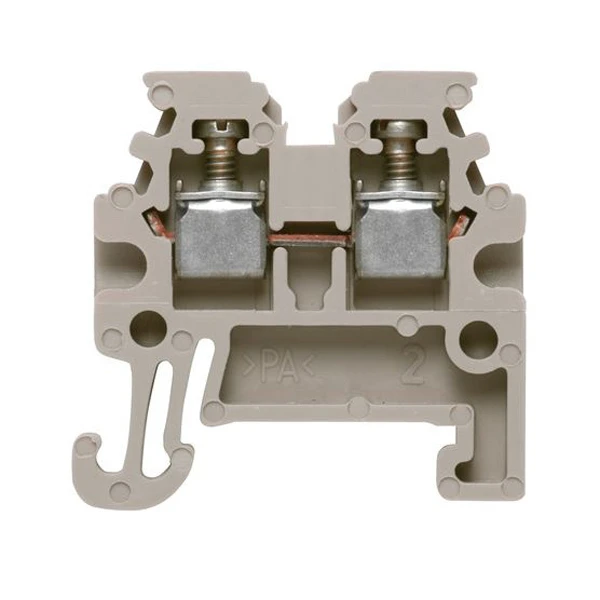

Weidmuller 1753280000 dark beige snap-on mounting modular feed through terminal made of Wemid body. The WDU 1.5/R3.5 terminal feature M2 clamping screw, 26 to 14AWG wire connection cross section, 0.3Nm tightening torque, 4kV rated impulse withstand voltage and 17.5A current at maximum wires. · · · Colour: Dark Beige · · Conductor Size: 26-14 AWG · · Height: 24.5mm · · Material: Wemid · · Width: 3.5mm · · Weight: 2g · · Depth: 24mm
130 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Connection position Inclined Inflammability class of insulation material acc. with UL94 V0 Mounting method Direct mounting Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Height at lowest possible mounting height 25 mm Operating temperature -50 – 120 °C Number of clamp positions per level 2 Number of levels 1 Width/grid dimension 3.5 mm Rated current In 17.5 A Rated voltage 400 V Length 24.5 mm Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 1.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 1.5 mm² Connectable conductor cross section solid-core 0.5 – 1.5 mm² Connectable conductor cross section multi-wired 1.5 – 1.5 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
