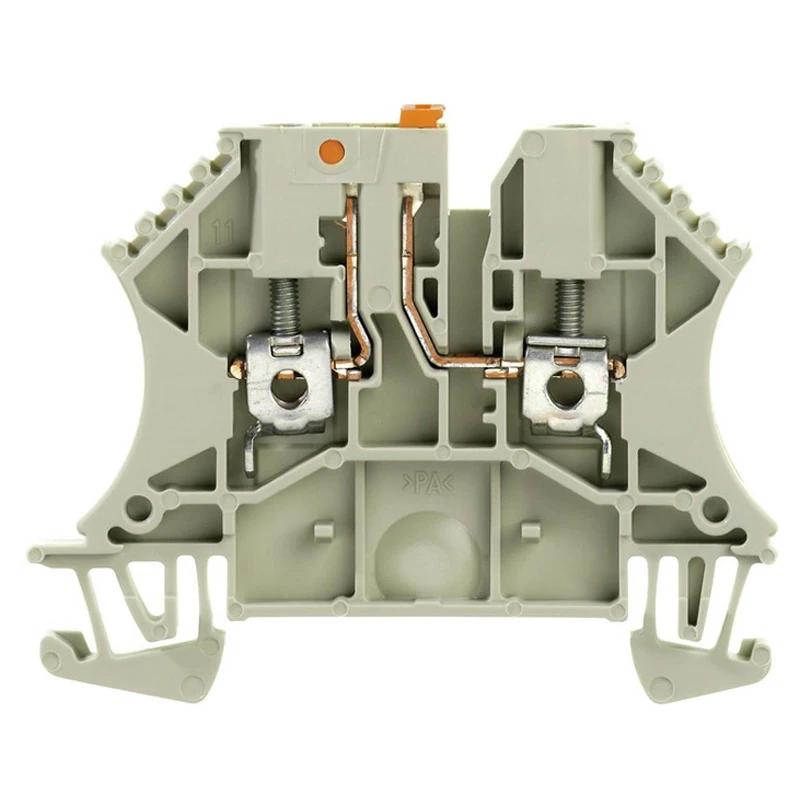

Weidmuller Terminal Block Test-Disconnect 24A 500V Dark Beige
£3.38 Incl. VAT
This Test-Disconnect Terminal Block is made of Wemid with screw connection. It offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications (Knife) disconnect terminal block Material insulation body Thermoplastic Mounting method DIN rail (top hat rail) 35 mm Colour Beige Type of cross disconnection Pluggable Type of electrical connection 2 Screw connection Rated voltage 500 V Type of electrical connection 1 Screw connection Rated current In 24 A Number of levels 1 Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Number of clamp positions per level 2 Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Closing plate required Yes Internally connected stages No With integrated test socket No · Technical Data Sheet – Click to Download
