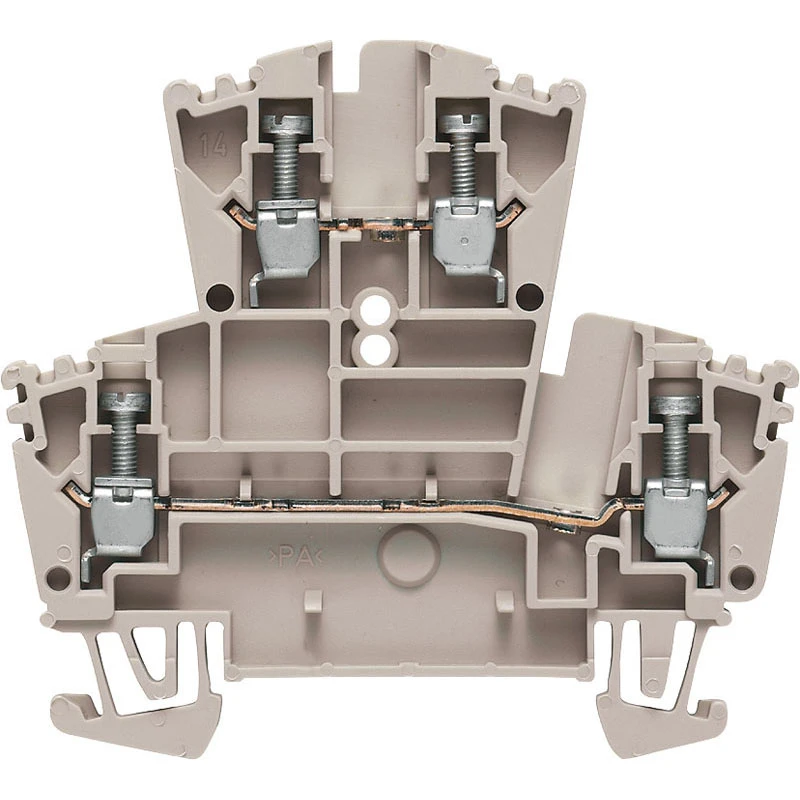

Weidmuller Terminal Double Tier WDK 2.5 2.5mm 24A 400V Beige Screw Connector
Weidmuller Terminal Double Tier WDK 2.5 2.5mm 24A 400V Beige Screw Connector
Weidmuller Terminal Double Tier WDK 2.5 2.5mm 24A 400V Beige Screw Connector - Image 2

Weidmuller Terminal Double Tier WDK 2.5 2.5mm 24A 400V Beige Screw Connector

£2.70 Incl. VAT

This is a Feed Through Double-Tier Terminal Block made of Wemid with Snap-On mounting. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1021500000 Categories: , , , , , Brand: Product Code: 2500013977

Description

Technical Specifications  Technical Specifications Feed-through terminal block Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Type of electrical connection 1 Screw connection Colour Beige Type of electrical connection 2 Screw connection Number of levels 2 Number of clamp positions per level 2 Rated current In 24 A Rated voltage 400 V Width 5.1 mm Operating temperature -50 – 120 °C Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section multi-wired 1.5 – 4 mm² Explosion-tested version ‘Ex e’ Yes Internally connected stages No Closing plate required Yes · Technical Data Sheet – Click to Download
