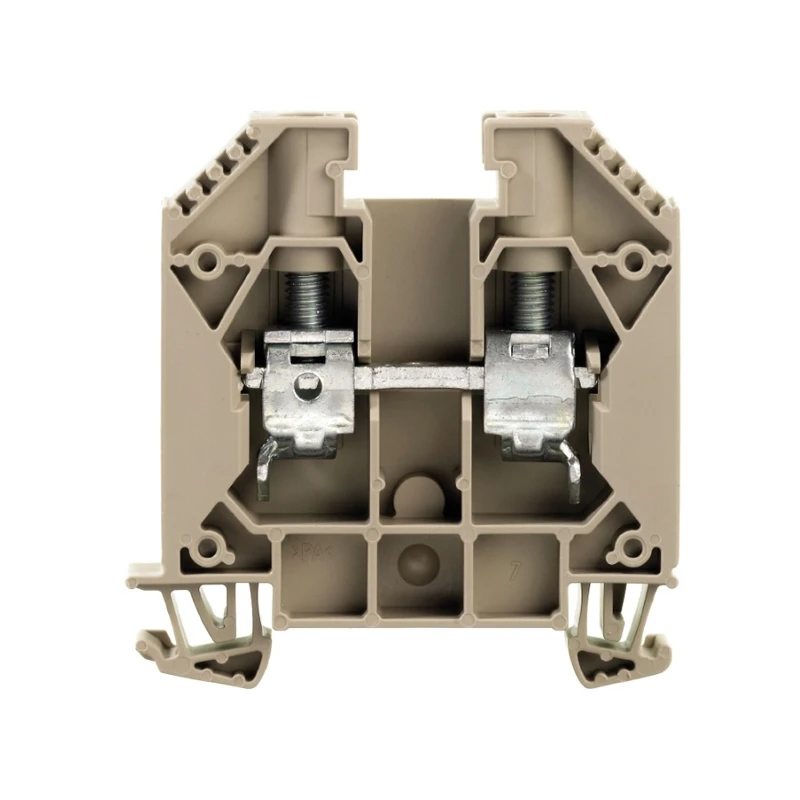

Terminal Feed Thr WDU 35 35mm 125A 1000V Beige Screw Connector
£5.23 Incl. VAT
This is a Feed Through Terminal Block made of Wemid with Snap-On mounting. The WDU 35 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel
132 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Feed-through terminal block Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Connection position Sideways Colour Beige Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Width 16 mm Rated voltage 1000 V Length 60 mm Height at lowest possible mounting height 63 mm Connectable conductor cross section solid-core 2.5 – 16 mm² Operating temperature -50 – 120 °C Height 60 mm Rated current In 125 A Number of levels 1 Width/grid dimension 16 mm Number of clamp positions per level 2 Connectable conductor cross section fine-strand without cable end sleeve 2.5 – 35 mm² Connectable conductor cross section fine-strand with cable end sleeve 2.5 – 35 mm² Connectable conductor cross section multi-wired 2.5 – 50 mm² Internally connected stages No Closing plate required Yes Explosion-tested version ‘Ex e’ Yes · Technical Data Sheet – Click to Download
