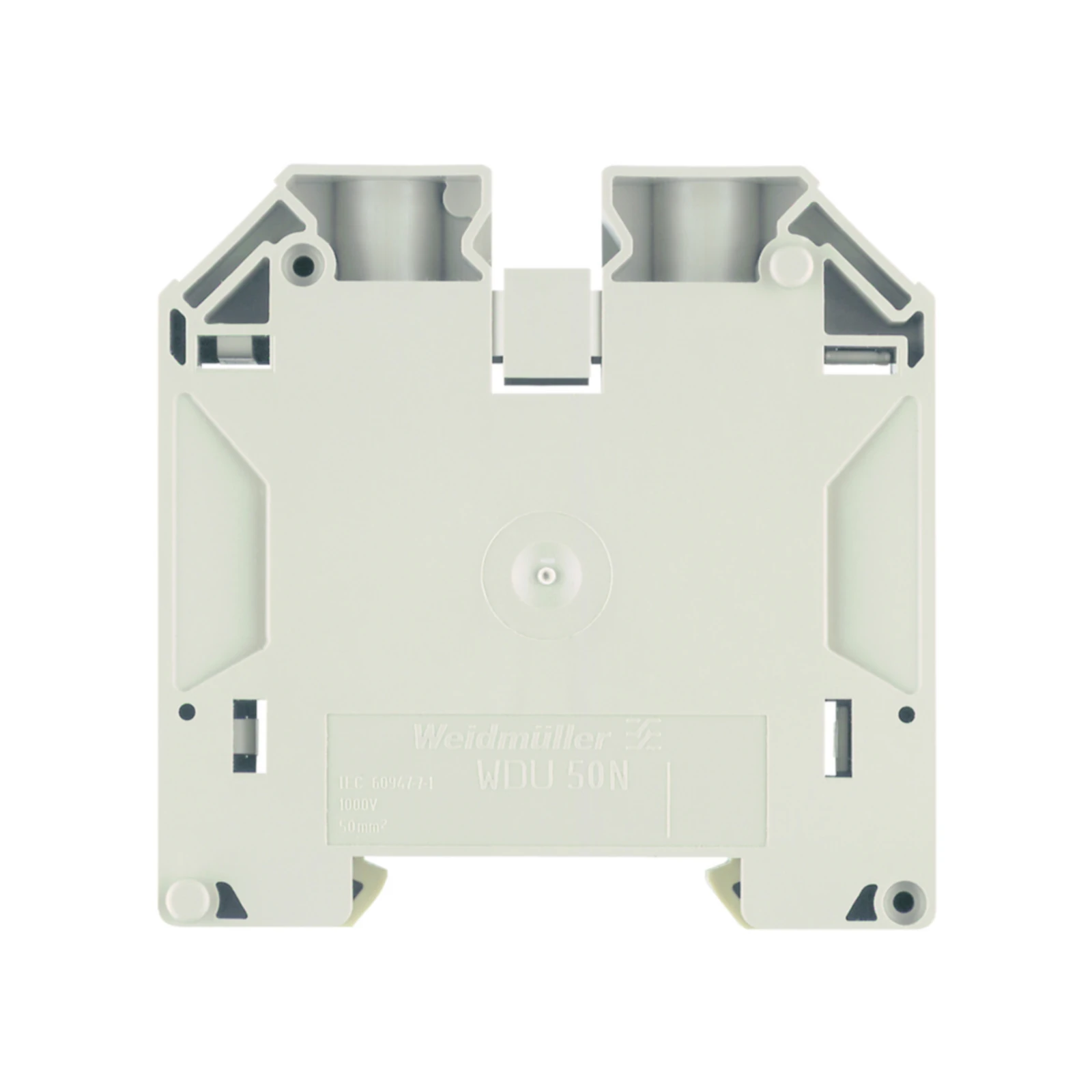

Terminal Feed Thr WDU 50N 50mm 150A 1000V Beige Screw Connector - Image 3

Terminal Feed Thr WDU 50N 50mm 150A 1000V Beige Screw Connector

£10.20 Incl. VAT

Weidmuller 1820840000 dark beige TS 35 snap-on direct mounting modular feed through terminal is made of Wemid body. The WDU 50N terminal features M6 clamping screw, 8 to 0AWG wire connection cross section, 3.5 to 6Nm tightening torque, 8kV rated impulse withstand voltage and 192A current at maximum wires. 1000V DC rated voltage tested. 1000V UL and CSA for usage groups B and C can be used with isolating DIN rails and when using WTW-EN partitions. · · · Colour: Dark Beige · · Conductor Size: 8-0 AWG · · Height: 70mm · · Material: Wemid · · Width: 18.5mm · · Weight: 84g · · Depth: 69.6mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1820840000 Categories: , , Brand: Part Number: 2500628972

Description

Technical Specifications  Technical Specifications Feed-through terminal block Material insulation body Thermoplastic Inflammability class of insulation material acc. with UL94 V0 Connection position Inclined Colour Beige Mounting method Direct mounting Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Length 70 mm Width/grid dimension 18.5 mm Rated voltage 1000 V Rated current In 150 A Height at lowest possible mounting height 70.6 mm Connectable conductor cross section multi-wired 10 – 70 mm² Connectable conductor cross section fine-strand with cable end sleeve 10 – 50 mm² Connectable conductor cross section fine-strand without cable end sleeve 10 – 50 mm² Connectable conductor cross section solid-core 10 – 16 mm² Operating temperature -50 – 120 °C Number of clamp positions per level 2 Number of levels 1 Explosion-tested version ‘Ex e’ No Closing plate required No Internally connected stages No · Technical Data Sheet – Click to Download
