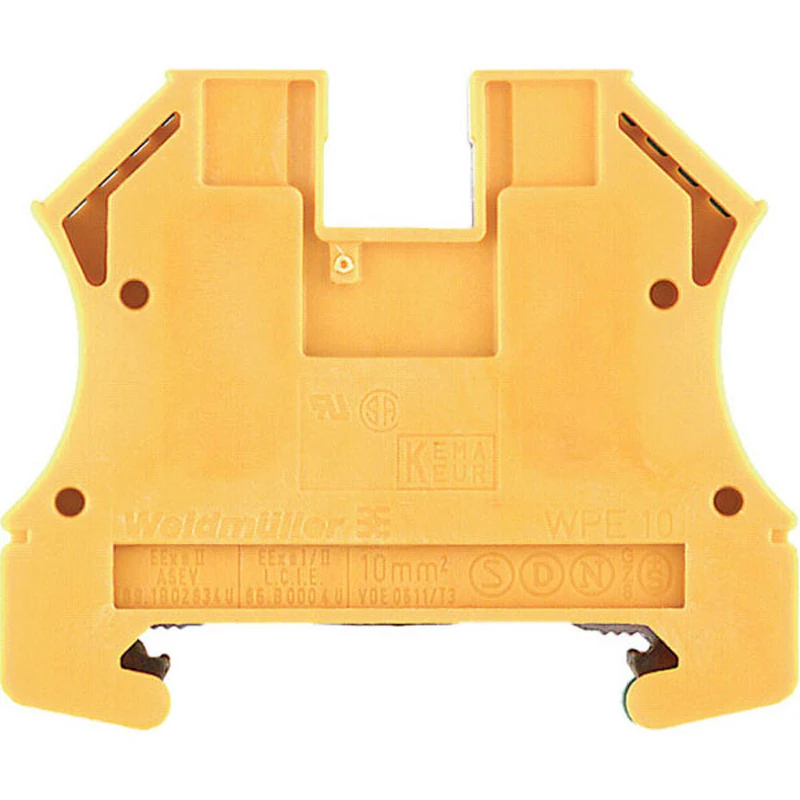

Terminal Wpe 10 Screw Connection 10mm² 8Kv 1000V Green/Yellow
Terminal Wpe 10 Screw Connection 10mm² 8Kv 1000V Green/Yellow
£4.12 Incl. VAT
This is a PE Terminal made of Wemid with screw connection, PE connection and closed version. The WPE 10 offers high reliability and variety of designs of the terminal blocks with clamping yoke connections make planning easer and optimises operational safety. The Klippon connect provides a proven response to a range of different requirements. · · · Identical contours for easier planning · · The maintenance-free connection means the clamping screw does not need to be re-tightened · · Vibration-resistant connectors – ideal for applications in harsh conditions · · Quick installation as the products are delivered with clamping yoke open · · Small “W-Compact” size saves space in the panel · · Durable and impact resistant · · One piece CAT 6 compliant corners · · Pre-drilled trunking base · · 25mm and 35mm deep 1 & 2 gang outlet boxes available · · Designed to accommodate a range of wiring accessories
661 in stock
Description
Technical Specifications Technical Specifications Earth terminal block Inflammability class of insulation material acc. with UL94 V0 Mounting method DIN rail (top hat rail) 35 mm Material insulation body Thermoplastic Connection position Sideways Colour Green/yellow Type of electrical connection 1 Screw connection Type of electrical connection 2 Screw connection Height at lowest possible mounting height 60 mm Number of levels 1 Width/grid dimension 9.9 mm Connectable conductor cross section multi-wired 1.5 – 16 mm² Connectable conductor cross section solid-core 1.5 – 16 mm² Connectable conductor cross section fine-strand with cable end sleeve 1.5 – 16 mm² Connectable conductor cross section fine-strand without cable end sleeve 1.5 – 16 mm² Operating temperature -50 – 120 °C Length 56 mm Number of clamp positions per level 2 PEN function possible No Closing plate required No · Technical Data Sheet – Click to Download
