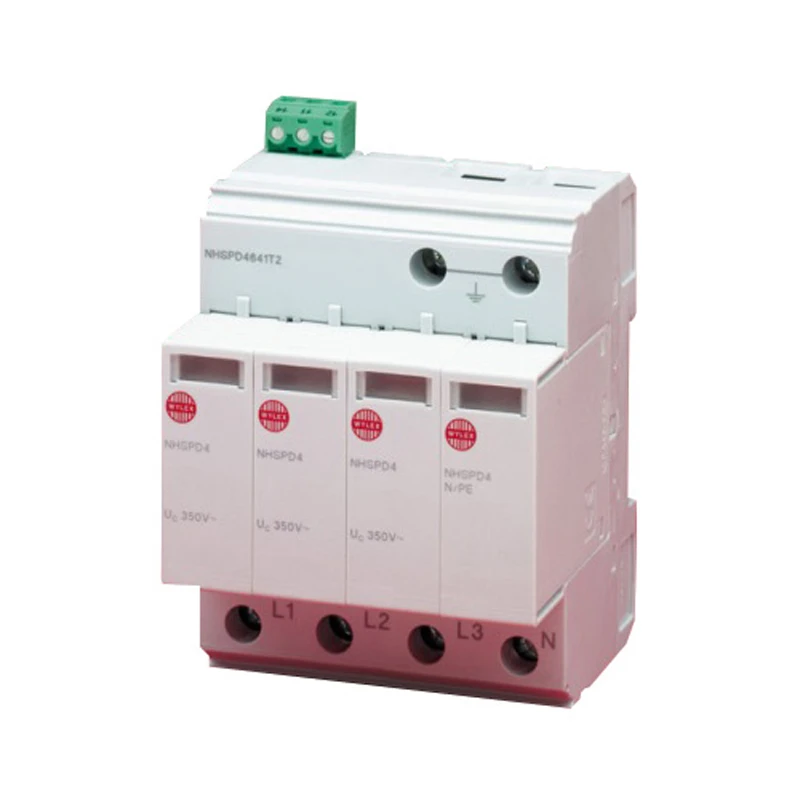

Type 2 SPD for 3P 5-wire Systems (4 Modular Width)
Type 2 SPD for 3P 5-wire Systems (4 Modular Width)

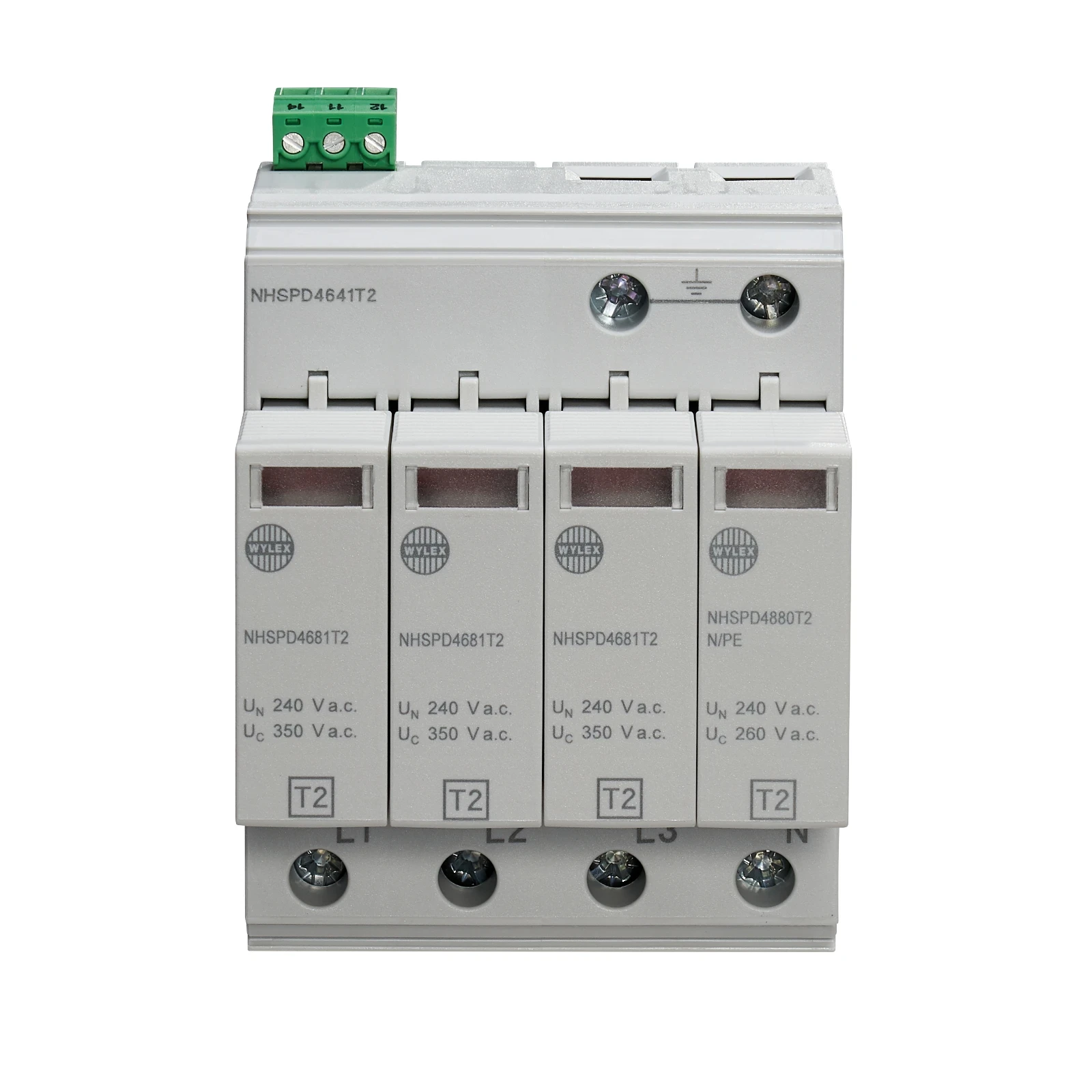

Type 2 SPD for 3P 5-wire Systems (4 Modular Width) - Image 2
Type 2 SPD for 3P 5-wire Systems (4 Modular Width) - Image 3

Type 2 SPD for 3P 5-wire Systems (4 Modular Width)

£266.56 Incl. VAT

Wylex Surge Protection Device with remote indication contact is a type 2 surge arrester provides protection against overvoltage originating from switching and the secondary effects of lightning strikes. This device will discharge current having an 8/20µs waveform and provide a low voltage protection level of =1.5kV (Up) for sensitive electronic equipment exceeding the requirements for category II equipment identified within table 44.3 (BS7671). · · · Accessory for all Wylex sub-distribution boards · · SPD only, comes with plug-in modules · · 4 modules wide · · Nominal Voltage (AC) 240/415

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: NHSPD4641T2 Categories: , Brand: Part Number: 2500584356

Description

Technical Specifications  Technical Specifications Surge protection device for power supply systems Voltage protection level L-N 1.4 kV Nominal discharge surge current 8/20 µs (In) 20 kA Number of conductors (without earthing) 4 Integrated backup fuse No Type / Test class 2 Yes Short-circuit breaking capacity (Isccr) 25 kA Voltage protection level N-PE 1.5 kV Max. discharge surge current (8/20) 40 kA Max. conductor cross section flexible (fine-strand) 25 mm² Max. conductor cross section solid (solid, stranded) 35 mm² Max. voltage (Uc) 350 V System configuration TN-S Yes System configuration TT Yes System configuration TN No System configuration TN-C No System configuration DC No System configuration IT No System configuration other No System configuration TN-C-S Yes With remote signalling contact Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
