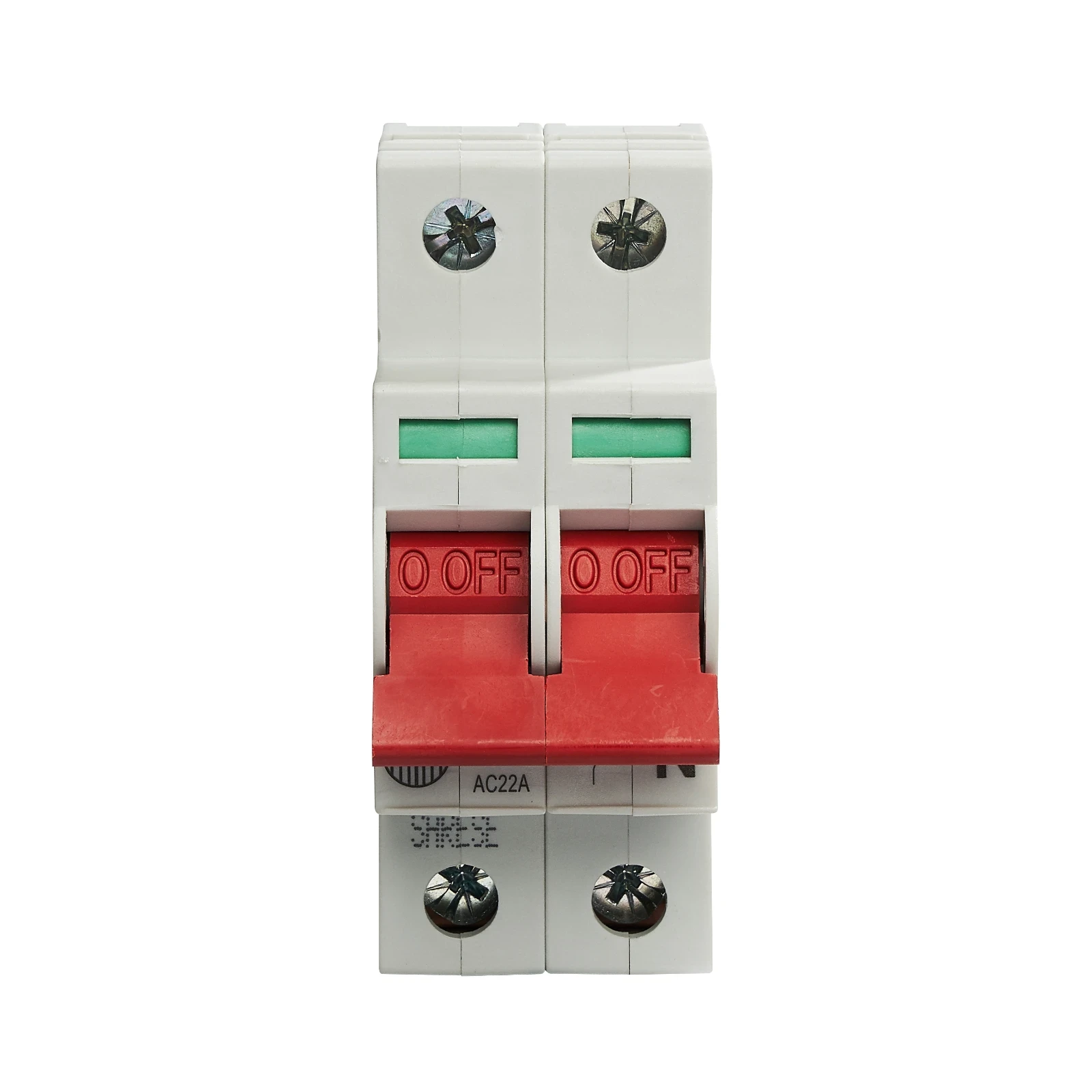

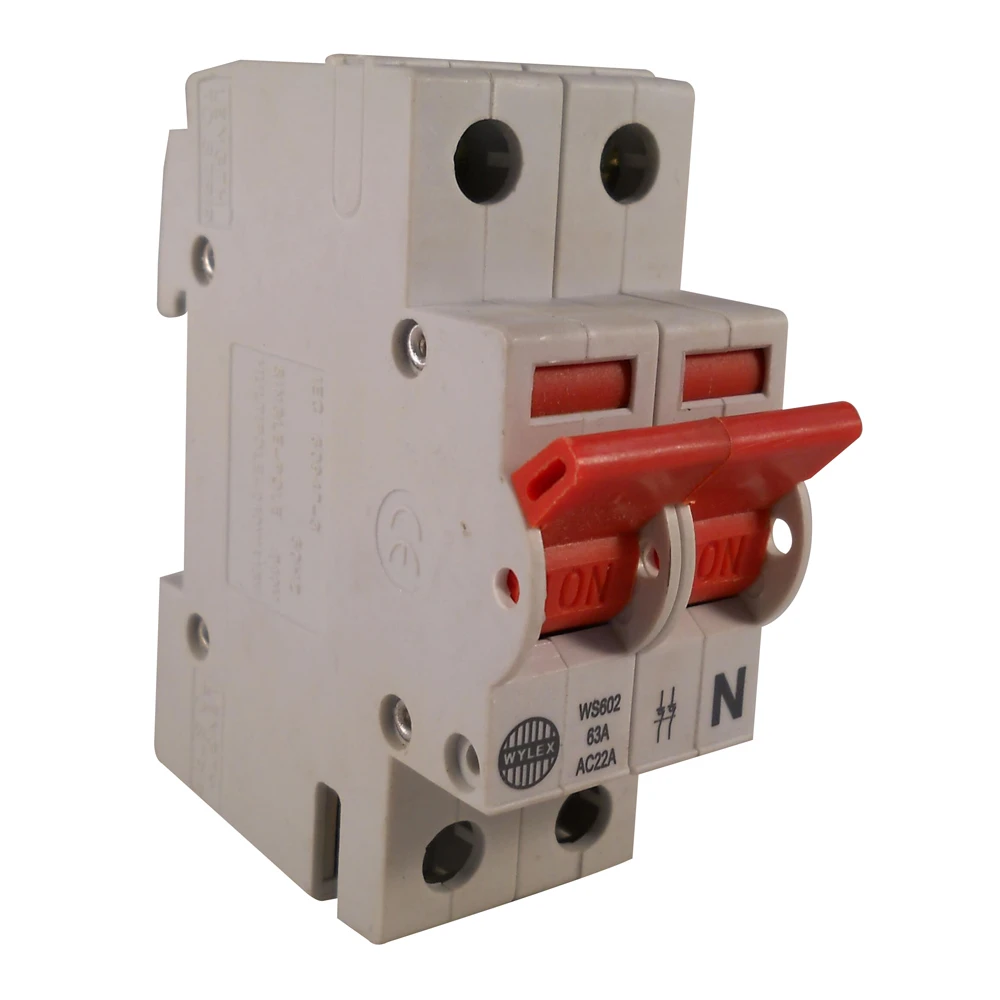

Wylex 63A DP Main Switch
Wylex 63A DP Main Switch
Wylex 63A DP Main Switch - Image 2
Wylex 63A DP Main Switch - Image 3

Wylex 63A DP Main Switch

£25.24 Incl. VAT

Wylex provide a range of isolators designed for applications where local isolation is required. The modular WS range of switches can be independently configured to provide a variety of live and neutral arrangements up to 4 poles. · · · 63A Swich disconnector · · Double pole · · DIN rail mounting

2 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: WS602 Categories: , Brand: Part Number: 2500040563

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Number of poles 2 Conditioned rated short-circuit current Iq 16 kA Max. rated operation voltage Ue AC 400 V Rated permanent current Iu 63 A Rated operating voltage 230 – 400 V Version as main switch Yes Version as maintenance-/service switch No Interlockable No Motor drive optional No Suitable for distribution board installation Yes Voltage release optional No · Technical Data Sheet – Click to Download
