ABB TF42-0.74 Thermal Overload Relay
ABB TF42-0.74 Thermal Overload Relay

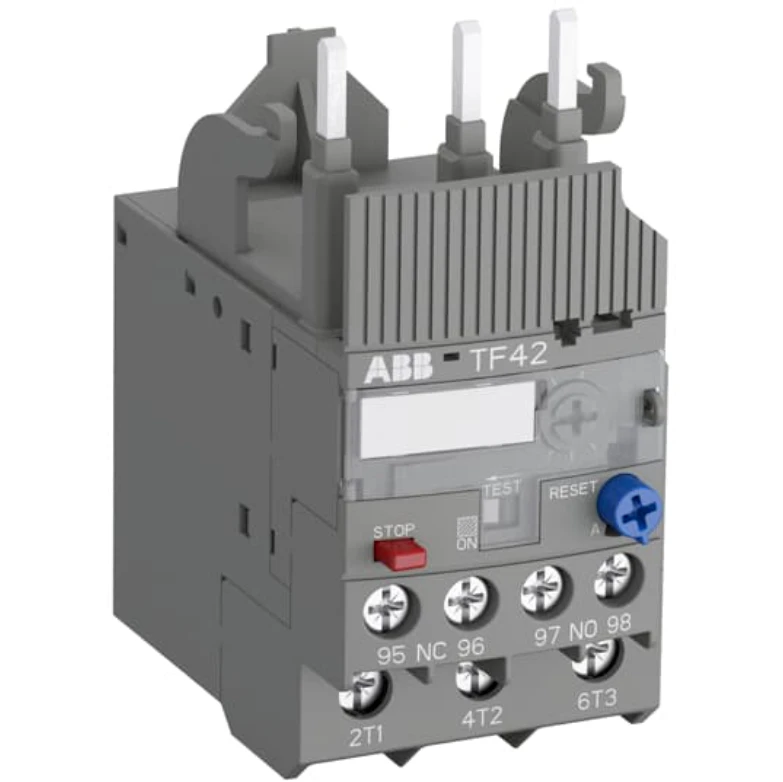

ABB TF42-0.74 Thermal Overload Relay - Image 2
ABB TF42-0.74 Thermal Overload Relay - Image 3

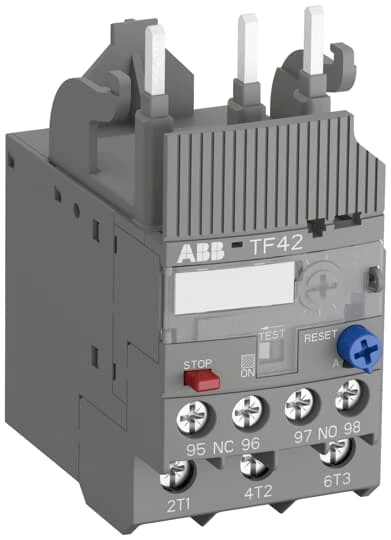

ABB TF42-0.74 Thermal Overload Relay - Image 4

ABB TF42-0.74 Thermal Overload Relay

£57.34 Incl. VAT

The TF42-0.74 Thermal Overload Relay Is An Economic Electromechanical Protection Device For The Main Circuit. It Offers Reliable And Fast Protection For Motors In The Event Of Overload Or Phase Failure. The Device Has Trip Class 10. Further Features Are The Temperature Compensation, Trip Contact (NC), Signal Contact (NO), Automatic- Or Manual Reset Selectable, Trip-Free Mechanism, STOP Function And A Trip Indication. The Overload Relays Are Connected Directly To The Block Contactors. Single Mounting Kits Are Available As Accessory. · · · Thermal Overload Relay · · Manual or Auto Reset · · Trip Class 10 · · gM characteristics for motor protection applications · · Power loss values within the limits of IEC 60269 · · Compatible range of fuse holders available · · Pre-arching: 3,000 · · Total at 415V AC: 8,500 · · Total at 550V AC: 11,000 · · Watts loss: 2

6 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAZ721201R1021 Categories: , , Brand: Part Number: 2500385910

Description

Technical Specifications  Technical Specifications Thermal overload relay Number of auxiliary contacts as normally closed contact 1 Number of auxiliary contacts as change-over contact 1 Number of auxiliary contacts as normally open contact 1 Max. rated operation voltage Ue 690 V Adjustable current range 0.55 – 0.74 A Reset function input No Reset function automatic Yes Reset function push-button Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
