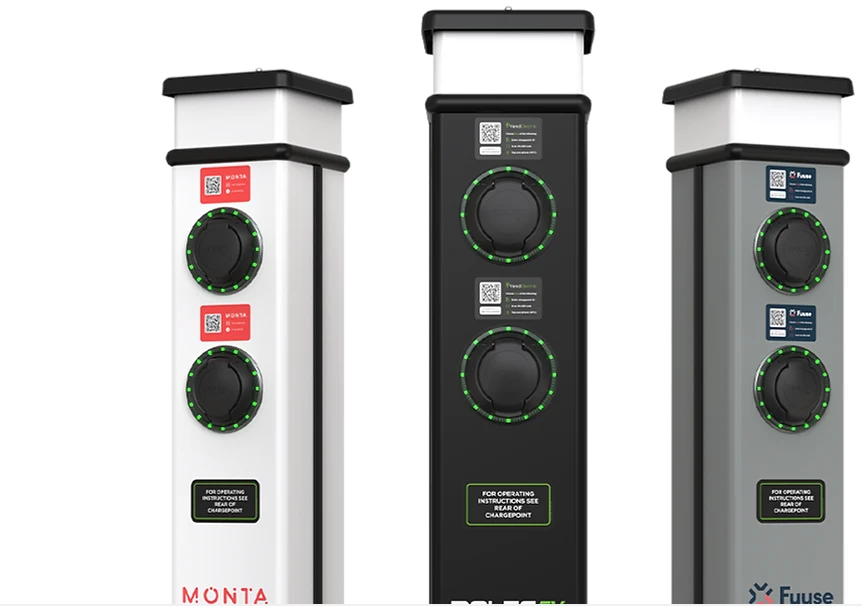

Basiccharge EV Charger Single Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1 x 63A 230V AC
Basiccharge EV Charger Single Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1 x 63A 230V AC
Basiccharge EV Charger Single Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1 x 63A 230V AC - Image 2

Basiccharge EV Charger Single Phase Grey 2 x Type 2 (IEC 62196) Charging Sockets Up To 7.4kW (32A) Per Socket 1 x 63A 230V AC

£2,226.90 Incl. VAT

The BASICCHARGE is a simplistic and affordable EV charging pedestal. This versatile charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back office management system. · · · Plug & charge, mobile app or RFID controlled charging · · Over-the-air firmware / software updates · · Built-in AC overload & fault current protection (RCBO) · · LED amenity lighting head (Photocell controlled)

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ROLEC0221G Categories: , Brand: Part Number: 2501516871

Description

Technical Specifications  Technical Specifications Charging device for electric vehicles Installation side connection model Single phase Degree of protection (IP rating) IP54 Frequency 50/60 Hz Impact resistance (IK rating) IK10 Depth 205 mm Number of socket outlets Type 2 2 Max. power per charging point 7.4 kW Number of charging units 2 Height 1130 mm Width 205 mm Voltage type of supply voltage AC Open Charge Point Protocol (OCPP) version 1.6 Max. output current DC 32 A Networkable via Wi-Fi Yes Networkable via LAN Yes Radio standard 4G Yes Floor mounting Yes · Technical Data Sheet – Click to Download
