Plastic Safety Switch XCSTE 2 NC Slow Break 1Entry Tappedm16 24V
£297.28 Incl. VAT

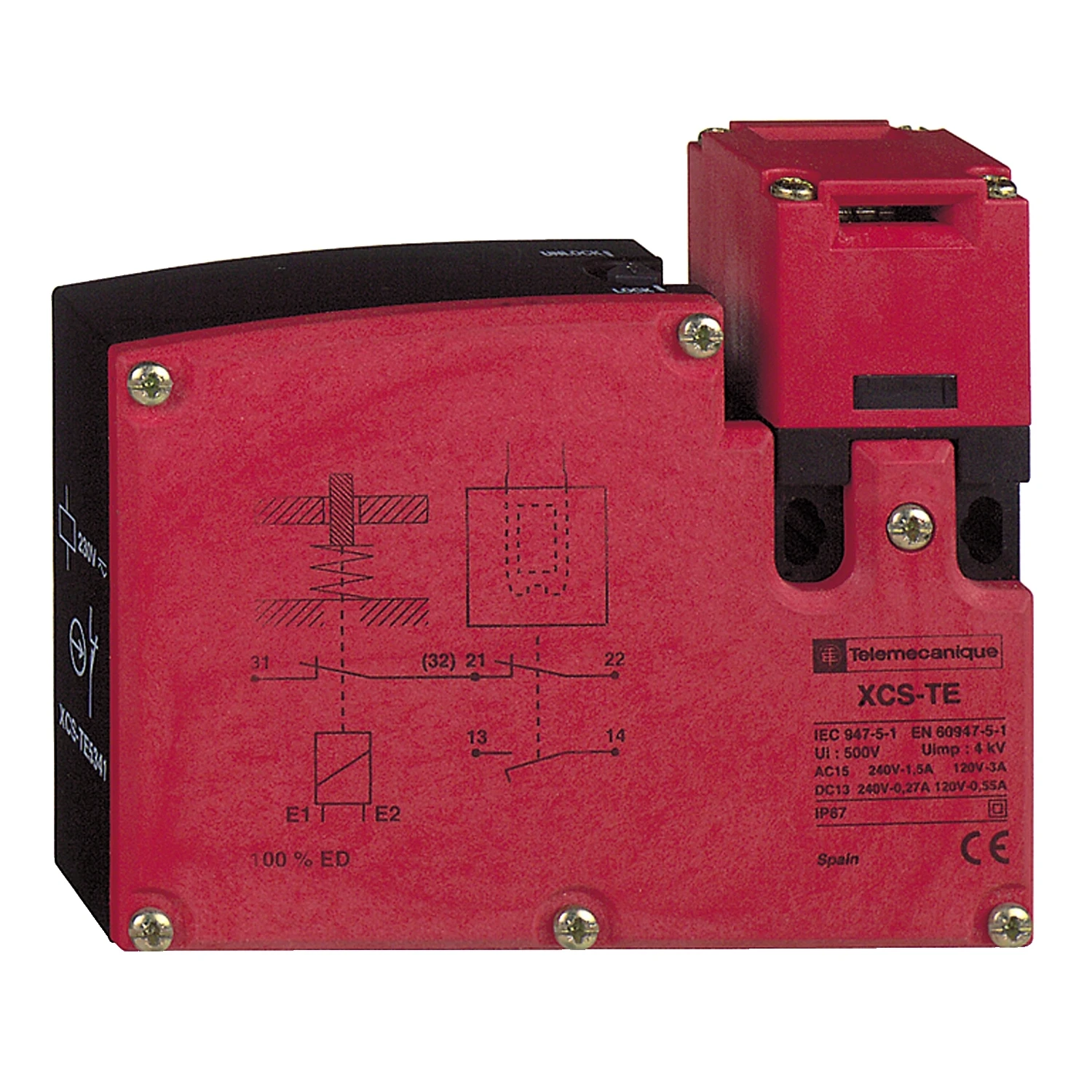

This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. It has 2 normally closed simultaneous (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a M16 cable gland entry, allowing for flexible installation. · · Range: Preventa Safety Detection · · It has 2 normally closed simultaneous (slow break) main contacts actuated by key, contact states given when the key is inserted. · · And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. · · Depth: 33mm · · Its B10D reliability data is 5 000 000. · · Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions.
1 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Position switch with guard locking Interface type None Housing material Plastic Type of interface for safety communication None Explosion safety category for gas None Type of guard locking Quiescent current principle Construction type housing Cuboid Rated operation current Ie at AC-15, 230 V 1.5 A Rated operation current Ie at DC-13, 230 V 0.27 A Number of contacts as change-over contact 0 Number of contacts as normally open contact 0 Clamping force 500 N Degree of protection (IP rating) IP67K Type of electric connection Cable entry metrical Type of switching contact Slow-action switch Width sensor 110 mm Length of sensor 33 mm Number of contacts as normally closed contact 2 Rated operation current Ie at DC-13, 125 V 0.55 A Rated operation current Ie at DC-13, 24 V – A Rated operation current Ie at AC-15, 24 V – A Number of safety auxiliary contacts 0 Height of sensor 94 mm Rated operation current Ie at AC-15, 125 V 3 A Rated control supply voltage Us magnet drive at AC 50 Hz 24 – 24 V Rated control supply voltage magnet drive at AC 60 Hz 24 – 24 V Rated control supply voltage magnet drive at DC 24 – 24 V Ambient temperature during operating -25 – 60 °C With status indication No With escape unlocking No With auxiliary release No Suitable for safety functions Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188112
